Product Details:
|
| Model Number:: | VUO-020-005A1 | Output Power:: | 1 - 50W |
|---|---|---|---|
| Input Voltage:: | 100-265V | Output Frequency:: | 50Hz/60Hz |
| Output Current:: | 4000mA | IP Rate:: | IP67 |
| Customized Service:: | OEM/ODM Label Cable Plug | Dimenssion:: | 182*30*20(mm) |
| High Light: | Super thin cv LED driver transformer,20w Slimline LED Driver,Waterproof Ip67 Slimline LED Driver |
||

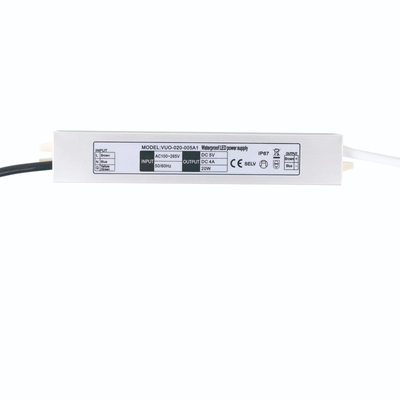

Super thin 20w cv led driver transformer ac-dc 5v 4a power supply waterproof ip67 for led lighting
| Model | VUO-020-005A1 | |
| Output | DC voltage | 5V |
| Rated current | 4A | |
| Current range | 0~4A | |
| rated power | 20W | |
| Ripple & Noise (peak to peak) | <200mV | |
| No-load voltage | ±0.5V | |
| Input | voltage range | 100~265VAC |
| Current | 47~63Hz | |
| Power factor | 0.5 | |
| effectiveness(Typ.) | 76% | |
| Alternating current(Typ.) | 0.26A/220VAC | |
| Protection | Short circuit | Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal |
| overload | 6.1A | |
| environment | Operating temperature | -30~+540℃ (Please refer to the load reduction curve) |
| Protection class | IP67 Suitable for outdoor and indoor use | |
| Storage temperature | -40~+80℃ | |
| Safety&EMC | Safety standards | Suitable for EN61347-1;EN61347-2-13;SELV;IP67 |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC,I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| Tips | 1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C . 2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth. | |
Product Description:
The Slimline LED Driver is a high-performance, compact, and energy-efficient device designed to power and control LED lighting systems. This driver is designed to operate with 12V or 24V DC LED lights and offers a wide range of output voltage and current options to suit various lighting applications.
