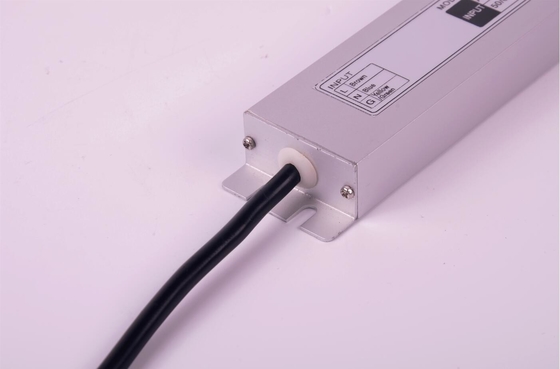

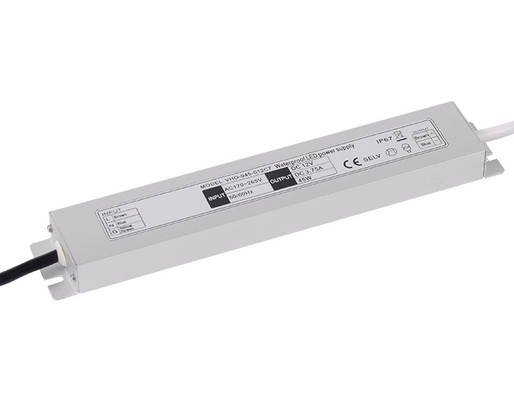

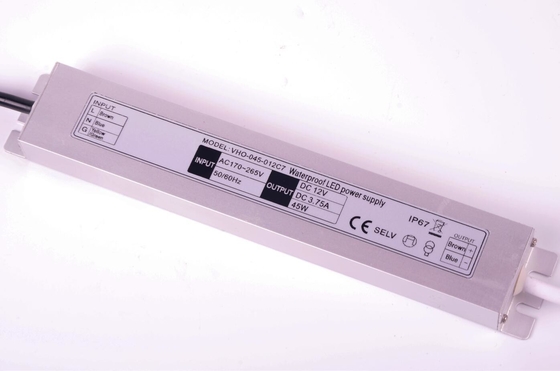

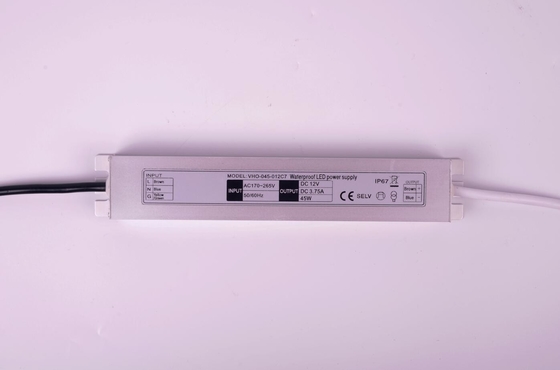

12V Constant Voltage Slimline LED Driver 45W Lightweight 213x35.6x17.4mm

12V Constant Voltage Slimline LED Driver 45W Lightweight 213x35.6x17.4mm

12V Constant Voltage Slimline LED Driver 45W Lightweight 213x35.6x17.4mm

12V Constant Voltage Slimline LED Driver 45W Lightweight 213x35.6x17.4mm

12V Constant Voltage Slimline LED Driver 45W Lightweight 213x35.6x17.4mm

12V Constant Voltage Slimline LED Driver 45W Lightweight 213x35.6x17.4mm

Large Image : 12V Constant Voltage Slimline LED Driver 45W Lightweight 213x35.6x17.4mm

Product Details:

Place of Origin:	China
Brand Name:	H&W
Certification:	CE RoHS SAA ETL
Model Number:	VHO-045-012C7

Payment & Shipping Terms:

Minimum Order Quantity:	10 Sets
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	15~20 days
Payment Terms:	T/T, L/C
Supply Ability:	10000 sets per month

Contact Now

12V Constant Voltage Slimline LED Driver 45W Lightweight 213x35.6x17.4mm

Description

Model Name:	Slimline LED Driver	Work Style:	Constant Voltage
Output Power:	45W	Output Current:	3750mA
Output Voltage:	12V	Application:	LED Strip, Signage, Display
Warranty:	3 Years	Weight:	240g
High Light:	45W Slimline LED Driver , Lightweight Slimline LED Driver , 17.4mm 12V Constant Voltage Driver

Slimline LED Driver 45W 12V Constant Voltage Power Supply

Slimline LED Driver Features

* Wide input Voltage 180~264Vac
* Super thin slim design, with a height of 17.4mm
* Protections: short circuit,over load,over voltage
* IP rating: IP67
* Ultra-low start up temp.;Working temperature up to 60°C
* Fan-less design,cooling by free air convection,low noise
* High efficiency,long life,high reliability
* 100% full load burn-in test

Slimline LED Driver Specification

Item No.	VHO-045-012C7
Output Current	3750mA
Output Voltage	12V
Output Power	45W
Input Voltage	170-265V
Input Frequency	50/60 Hz
Dimension(mm)	L213W35.6H17.4(mm)
Efficiency	82%
Approval	CE RoHS SAA ETL

Installation Size

12V Constant Voltage Slimline LED Driver 45W Lightweight 213x35.6x17.4mm 0

Slimline LED Driver Application:

Our led drivers are widely used for:

1. LED Strip Light, LED Neon, LED urban Decoration

2. Mirror Lights

3. Cabinet Lights

4. LED Lighting Advertising, LED Display

5. LED Letter Lights

6. Safety Protection Apparatus

Slimline LED Driver FAQ

1. What is your MOQ?

Our MOQ is 10pcs. For 60W drivers, product with client's logo and customized product, MOQ is 500pcs.
2. What can we buy from you?
Constant Voltage LED drivers, Slim LED driver, Dimmable LED driver
3. How to guarantee quality?
Always a pre-production sample before mass production, triple aging test before enter warehouse.
4. What payment terms do you support?
FOB/EXW, 30% deposit, 70% before shipment by T/T.

12V Constant Voltage Slimline LED Driver 45W Lightweight 213x35.6x17.4mm 1
