Product Details:
|
| Model Number: | VUO-010-012A6 | Output Power: | 10W, 6-300W |
|---|---|---|---|
| Input Voltage: | AC100-265V | Output Voltage: | DC12V |
| Output Frequency: | 47~63HZ | Output Current: | 0-0.83A |
| Dimension: | 67*30*20mm | Protection: | OCP/OVP/SCP/OVT |
| High Light: | Constant Voltage LED Transformer Driver,10w LED Transformer Driver,Slimline Mini LED Power Supply |
||

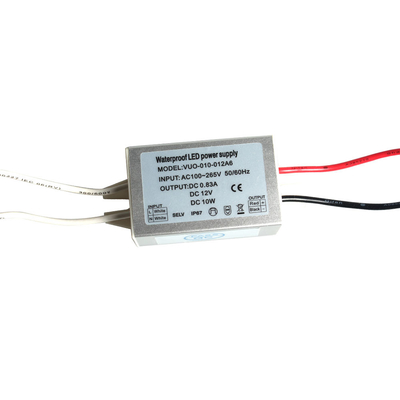

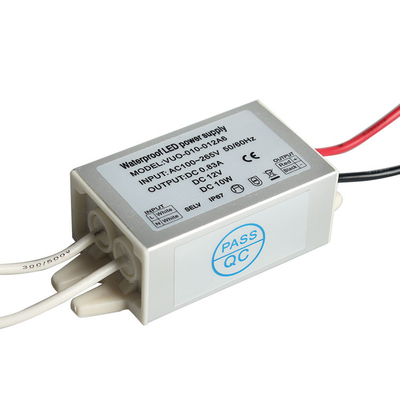

10w 12vdc Constant Voltage LED Transformer Driver Small Mini Power Supply
Customizable packaging small mini power supply 10w 12vdc constant voltage led transformer driver
Product Description:
The Slimline LED Driver is a compact and lightweight electronic device designed to regulate the voltage supplied to LED lights. As the name suggests, it has a slim and low-profile design, making it an ideal choice for applications where space is limited.
Parameters:
| Model | VUO-010-012A6 | ||
| Output | DC voltage | 12V | |
| Rated current | 0-0.83A | ||
| rated power | 10W | ||
| Ripple & Noise (peak to peak) | <400mV | ||
| No-load voltage | ±0.5V | ||
| Input | voltage range | 100~265VAC | |
| Current | 47~63Hz | ||
| Power factor | 0.5-0.7 | ||
| effectiveness(Typ.) | 0.81 | ||
| Alternating current(Typ.) | 0.09A/220VAC | ||
| Protection | Short circuit | Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal | |
| overload | 0.5A-0.76A | ||
| environment | Operating temperature | -30~+50℃ (Please refer to the load reduction curve) | |
| Protection class | IP67 Suitable for indoor and outdoor use | ||
| Storage temperature | -40~+80℃ | ||
| Safety&EMC | Safety standards | Suitable for EN61347-1;EN61347-2-13;SELV;IP67 | |
| Pressure | Input - Output: 2KVAC Input - Enclosure, Ground: 2KVAC Output - Enclosure, Ground: 0.5KVAC | ||
| Tips | 1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C . 2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth. | ||
Company:
Our corporate philosophy is“science and education towardsproduction”with an emphasis towards fostering high level talentTodaywe have morethan120skilled employees.40%college qraduates and 25%university qraduates.Three of our staff have received senior technical titles and one won theOutstandingAward for Skilled personnel" of Guangdong province.
Application:
1. Indoor and outdoor lighting: The Slimline LED Driver can be used to power LED lights in a variety of indoor and outdoor lighting applications, such as task lighting, accent lighting, and landscape lighting.
2. Architectural lighting: The Slimline LED Driver is well-suited for architectural lighting applications, where discrete and unobtrusive lighting fixtures are often desired. It can be used to power LED lights in coves, niches, and other architectural features.
3. Display lighting: The Slimline LED Driver is ideal for powering LED lights in display cases, shelving, and other decorative or merchandising displays.
4. Signage lighting: The Slimline LED Driver can be used to power LED lights in illuminated signs, channel letters, and other signage applications.
5. Automotive lighting: The Slimline LED Driver is often used in automotive lighting applications, such as LED headlights, tail lights, and interior lighting.
