Product Details:
|
| Model Name: | Slimline LED Driver | Work Style: | Constant Voltage SMPS |
|---|---|---|---|
| Output Power: | 20W | Output Current: | 1.67A |
| Output Voltage: | 12V | Application: | LED Strip, Signage, Display |
| Warranty: | 3 Years | Weight: | 145g |
| High Light: | Antiwear Slimline LED Driver,Switch Mode Slimline LED Driver,Waterproof 12V 20W LED Driver |
||
· Small size, High efficiency, High reliability, Long lifetime
· IP67 rating
· Working temperature -25~+80°C
· Protection: Overload, Short-circuit pratection, Over-temperature
· Typical efficiency: 90%
· Start delay design, which can reduce the starting current when multiple simulatance start
· CE, IP67 certifide, ROHS compliant
· Low output ripple moises

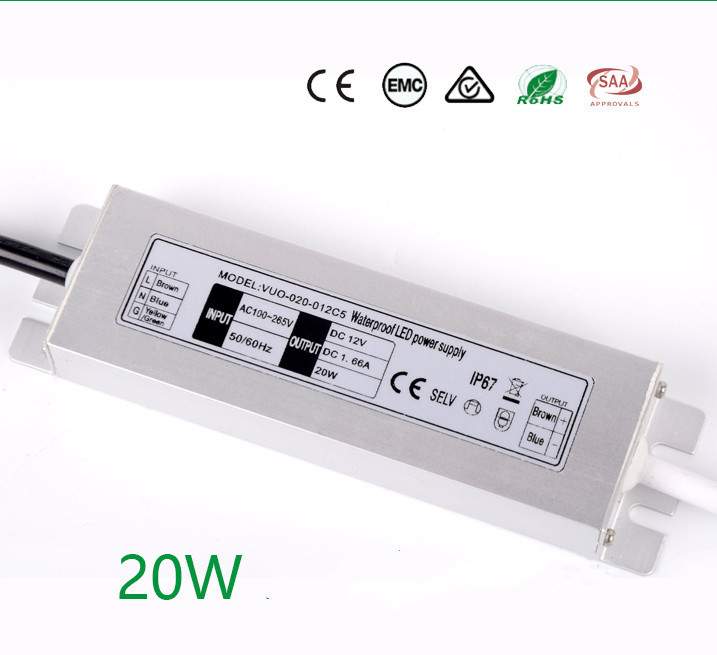

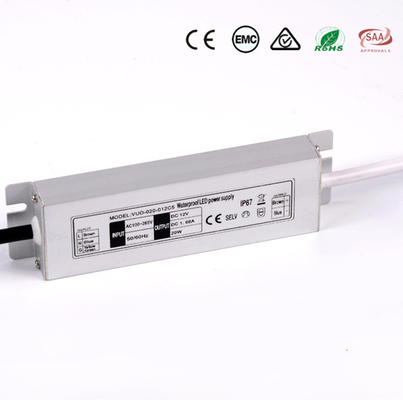

| Item No. | VUO-020-012C5 |
| Output Current | 1.67A |
| Output Voltage | 12V |
| Output Power | 20W |
| Input Voltage | 100-265V |
| Input Frequency | 50/60 Hz |
| Dimension(mm) | L133*W35.6*H17.4(mm) |
| Efficiency | 83% |
| Approval | CE RoHS SAA ETL |
Why Choosing Us?
* Huawei New Energy sole focus on LED drivers and accessories since 2008, which owns an experience R&D team with dozens of patents
* The 20w ultra thin power supply is up to 12mm thickness. We are one of the manufacturers in the world that can produce such thin LED driver in the field of this industry.
* Huawei New Energy can provide customized service and give one stop solution according to different client/application. Such as parameter customization, products consulting/selection and OEM/ODM service.
* Our products are strictly compliant to all major international safety and performance standard. All of our units are 100% tested by a set of rigorous standard control procedures before shipment.
* The products are quite mature and highly recognized by the market. We have already built the sales network in the world thanks to the partners' trust, such as Europe, Australia, US and Southeast Asia etcs.
What Service we can supply?
1. All inquiries will be replied within 24 hours
2. Professional manufacturer,welcom to visit our website
3. OEM/ODM avaliable:
A. Print logo on our product;
B. Customized specification;
4. After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
5. High efficiency,long life span,reasonable&competetative price,fast lead time;
6. We have our engineer team, if you have any question about your LED applications, let us know freely.
Slimline LED Driver FAQ
Q1. What's the trade terms you can do?
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo?
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing?
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time?
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
