Product Details:
|
| Model Name: | Slimline LED Driver | Work Style: | Constant Voltage SMPS |
|---|---|---|---|
| Output Power: | 20W | Output Current: | 0.83A |
| Output Voltage: | 24V | Application: | LED Strip, Signage, Display |
| Warranty: | 3 Years | Weight: | 145g |
| Highlight: | Slimline CV LED Driver,Ultralight CV LED Driver,Multipurpose Slim LED Driver |
||
· Small size, High efficiency, High reliability, Long lifetime;
· IP67 rating;
· Working temperature -25~+80°C;
· Protection: Overload, Short-circuit pratection, Over-temperature;
· Typical efficiency: 90%;
· Start delay design, which can reduce the starting current when multiple simulatance start;
· CE, IP67 certifide, ROHS compliant;
· Low output ripple moises.

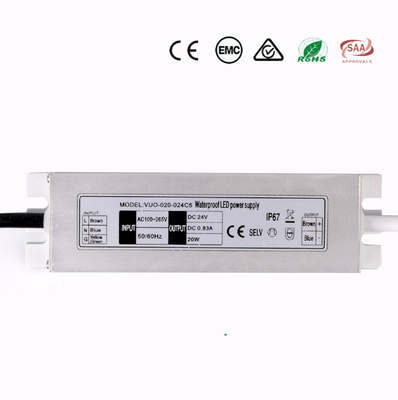

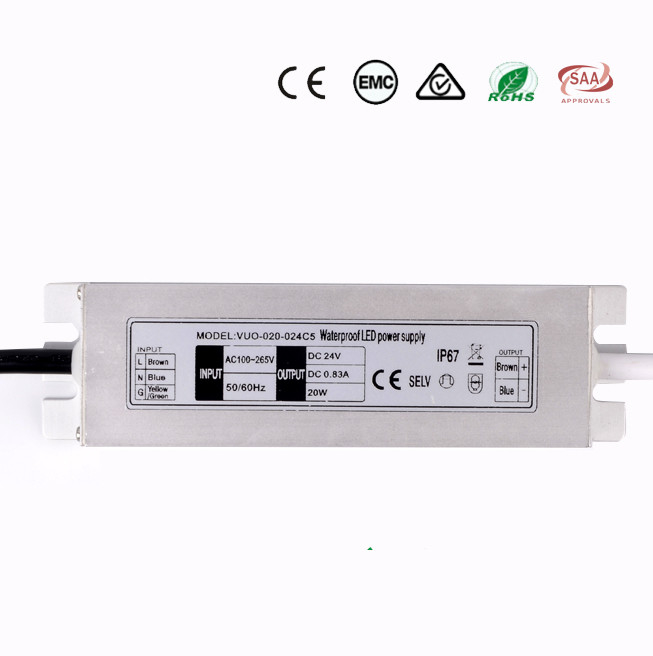

| Item No. | VUO-020-024C5 |
| Output Current | 0.83A |
| Output Voltage | 24V |
| Output Power | 20W |
| Input Voltage | 100-265V |
| Input Frequency | 50/60 Hz |
| Dimension(mm) | L133*W35.6*H17.4(mm) |
| Efficiency | 85% |
| Approval | CE RoHS SAA ETL |
Slimline LED Driver Application
Our led drivers are widely used for:
1. LED Strip Light, LED Neon, LED urban Decoration
2. Mirror Lights
3. Cabinet Lights
4. LED Lighting Advertising, LED Display
5. LED Letter Lights
6. Safety Protection Apparatus
Packing
Neutral white/brown or customized color box +Carton(double wall corrugated board, G.W. less than 20KGS); Wood case if necenarry.
Shipping
1. FedEx / DHL / UPS / TNT for samples, Door-to-Door;
2. By Air freight or by Sea for large quantity, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Slimline LED Driver FAQ
Q1. What’s your payment term?
A. We cccept T/T,L/C,Paypal.
Q2. How ‘s the delivery time?
A. It rests with the quantity you meed,2-15 days usually.
Q3. What’s your standard of package?
A. Normally are cartons,but also we can pack it according to your requirement.
Q4. Would you accept to use our own logo?
A. Yes,we can do OEM,if the quantity can reach MOQ.
Q5. Where is your shipping port?
A. Zhuhai port & Shenzhen port,as it is near to our factory,other port is also no problem.
Q6. How about the quality?
A. We have the best professional engineer and strict QA and QC system.
Q7. Can we be your distributor?
A. We are looking for distributor and agent all over the world for LED power supply.
