Product Details:
|
| Input Voltage: | 100-240Vac | Output Voltage: | 30-42V |
|---|---|---|---|
| Output Current: | 900mA | Waterproof: | IP67 Design For Indoor Or Outdoor Installations |
| Certification: | CE/ROHS/SAA | Sample Time: | 15days |
| Output Frequency: | 47~63HZ | Model Number: | CUF-1500-042G5-DL |
| High Light: | 42V Constant Current LED Driver,72W Constant Current LED Driver,ROHS Constant Current LED Driver |
||

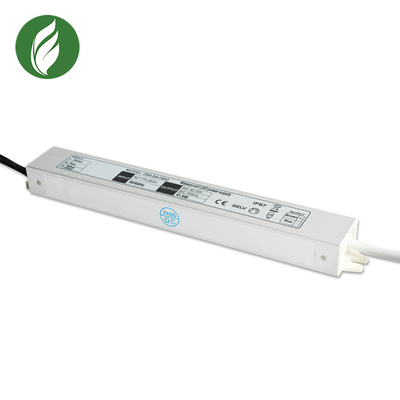

Manufacturer Supplier 42V 72W Mini Input Voltage Constant Current Led Driver Circuit
Constant Current LED Driver Product Features
* Constant current output
* Dry, damp and wet location
* IP67 waterproof design
* Ta:-30℃ ~ +60℃
* Protection: Overload,Short-circuit pratection,Over-temperature
* CE,IP67 certifide,ROHS compliant
* Low output ripple Noises
Product Description
| MODEL | CUF-1200-060G5-DL | CUF-1500-042G5-DL | |
| OUTPUT | DC VOLTAGE | 40-60V | 30-42V |
| RATED CURRENT | 600mA | 900mA | |
| RATED POWER | 50-72W | ||
| FLICKER | Flicker free | ||
| INPUT | VOLTAGE RANGE | 100-240Vac | |
| FREQUENCY RANGE | 47-63Hz | ||
| POWER FACTOR(Typ.) | >0.95 | ||
| EFFICIENCY(Typ.) | >88% | ||
| PROTECTION | Short circuit | Protection type:Hiccpe mode,recovers automatically after condition is removed | |
| Overload | constant current | ||
| ENVIRONMENT | WORKING TEMP. | -10~+40℃ (Refer to output load derating curve) | |
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | ||
| STORAGE TEMP | -40~+80℃ | ||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3 | ||
| EN61547 | |||
| NOTE |
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature. 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 3.Tolerance:includes set up tolerance,line regulation and load regulation. |
||
FAQ
Q: Are you manufacturer?
A: Yes, we're Zhuhai factory focus on 12V& 24V LED power supplies(/LED drivers/LED transformers). We have our own import&export license. Welcome to visit us.
Q: What's your advantages of your LED power supplies?
A: Our products use true rating and reliable raw materails (full copper transformers, thermal conductive silicone...) but we quote our customers very competitive prices
Q: What's your payment terms?
A : T/T, L/C, Paypal, Western Union and Trade Assurance on Alibaba.com
30% deposit and balance before shipment or against the copy of B/L (long-term cooperative customers)
Negotiable for our VIP customers.
Q: Do you offer samples for testing?
A: Yes,we can provide free samples for testing and closer inspection,but freight cost should be paid by customers.
Q: Do you have burn-in test?
A: All of our LED transformers will have 100% burn-in test for 3~4 hours before packing
Q: Do you provide any certificates for your products?
A: CE,RoHS,SAA basic certifications are always available, some of our products even ETL&CB&UKCA listed. Other certificates, if needed just let us know
Q: What about the warranty for your LED driver?
A: Normally we provide 3 years warranty for our standard products
We can supply 5 years warranty for our high-ending series
