Product Details:
|
| Product Name: | 23w Led Driver | Dimension: | 127*30*20mm |
|---|---|---|---|
| Protection: | OCP/OVP/SCP/OVT | Output Voltage: | Customizable |
| Output Frequency: | 47~63HZ | Input Voltage: | AC170-265V |
| Waterproof: | IP67 Grade | Output Power: | 23W |
| High Light: | 23W Constant Current LED Chip,OVP LED Chip Driver,IP67 23W LED Driver |
||

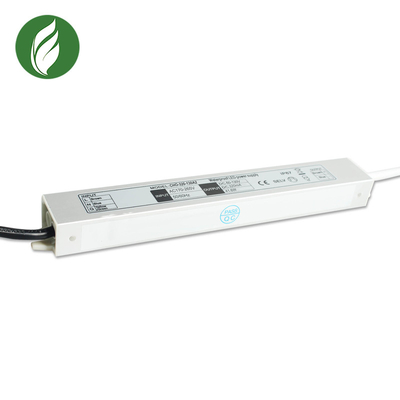

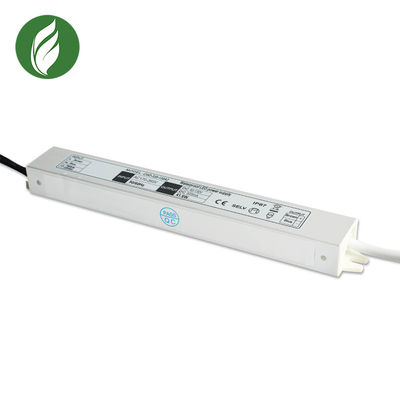

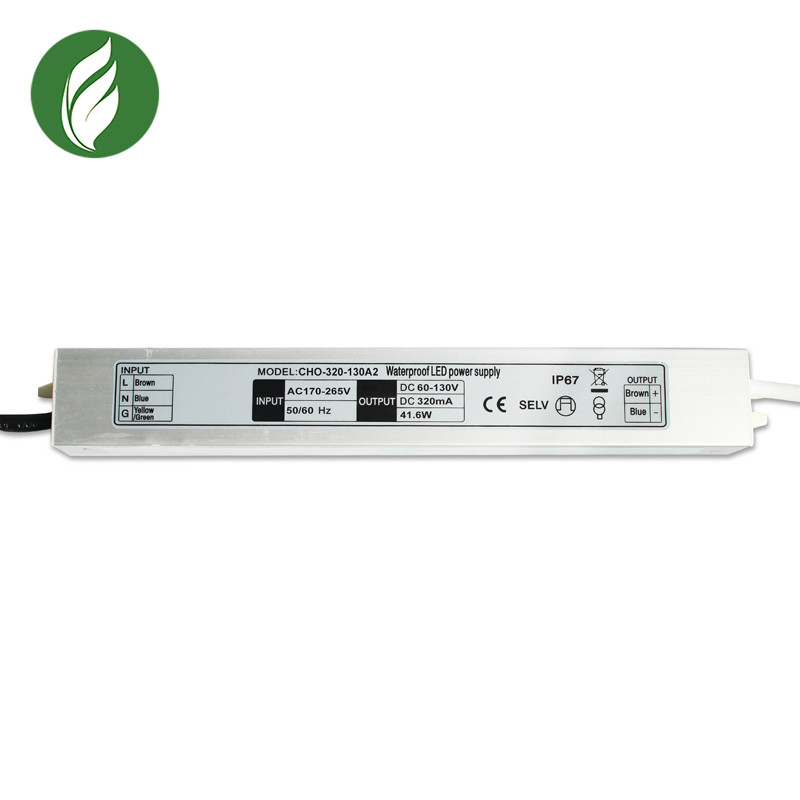

IP67 Waterproof 23W Constant Current LED Chip Driver Smart Control
High demand products 23w 320ma smart control constant current chip ac led driver
Features:
1. Provides constant current output for stable and reliable performance.
2. Suitable for dry, damp, and wet locations.
3. Boasts an IP67 waterproof design, ensuring protection against water and other liquids.
4. Can operate in temperatures ranging from -30°C to +60°C.
5. Equipped with overload, short-circuit, and over-temperature protection for added safety.
6. Certified with CE, IP67, and ROHS, meeting international standards for safety and environmental impact.
7. Produces low output ripple noises, ensuring smooth and stable voltage or current output.
| MODEL | CHO-320-065A3 | ||||
| OUTPUT | DC VOLTAGE | 30-65V | |||
| RATED CURRENT | 320mA | ||||
| CURRENT RANGE | ±20mA | ||||
| RATED POWER | 23W | ||||
| RIPPLE&NOISE(max) | <900mV | ||||
| NO-LOAD VOLTAGE | <69V | ||||
| INPUT | VOLTAGE RANGE | 170~265VAC | |||
| FREQUENCY RANGE | 47~63Hz | ||||
| POWER FACTOR(Typ.) | No PFC | ||||
| EFFICIENCY(Typ.) | 87% | ||||
| AC CURRENT(Typ.) | 0.17A/220VAC | ||||
| PROTECTION | Short circuit | Protection type:Hiccpe mode,recovers automatically after condition is removed | |||
| Overload | Constant current | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | ||||
| STORAGE TEMP | -40~+80℃ | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| NOTE | 1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature. 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 3.Tolerance:includes set up tolerance,line regulation and load regulation. |
||||
FAQ
1. Q: Do you offer OEM/ODM services?
A: Yes, we welcome OEM/ODM orders. We can print customers' brand logo and model number on the power label, and also offer laser logos on the products' aluminum/metal casing. Additionally, we can provide user manuals, customized color boxes, customized printing cartons, and other stickers to stick on LED power supplies or boxes.
2. Q: Do you conduct a burn-in test on your products?
A: Yes, all of our LED transformers undergo a 100% burn-in test for 3-4 hours before packing to ensure their quality and reliability.
3. Q: Do your products come with any certificates?
A: Yes, our products have basic CE, RoHS, and SAA certifications, and some of them are ETL, CB, and UKCA listed. If other certificates are needed, please let us know.
4. Q: What kind of warranty do you offer for your LED drivers?
A: We provide a 3-year warranty for our standard products and a 5-year warranty for our high-end series.
