Product Details:
|
| Keywords: | 12V Led Driver | Certification: | ROHS/SAA |
|---|---|---|---|
| Output Current: | 2100mA | Input Voltage: | 265V |
| Output Power: | 100w | Warranty: | 3 Years |
| Output Frequency: | 47~63HZ | Model Number: | VUF-100-048E1 |
| High Light: | Constant Current Dimmable LED Driver,2100ma Dimmable LED Driver,Dimmable LED Driver 100w |
||

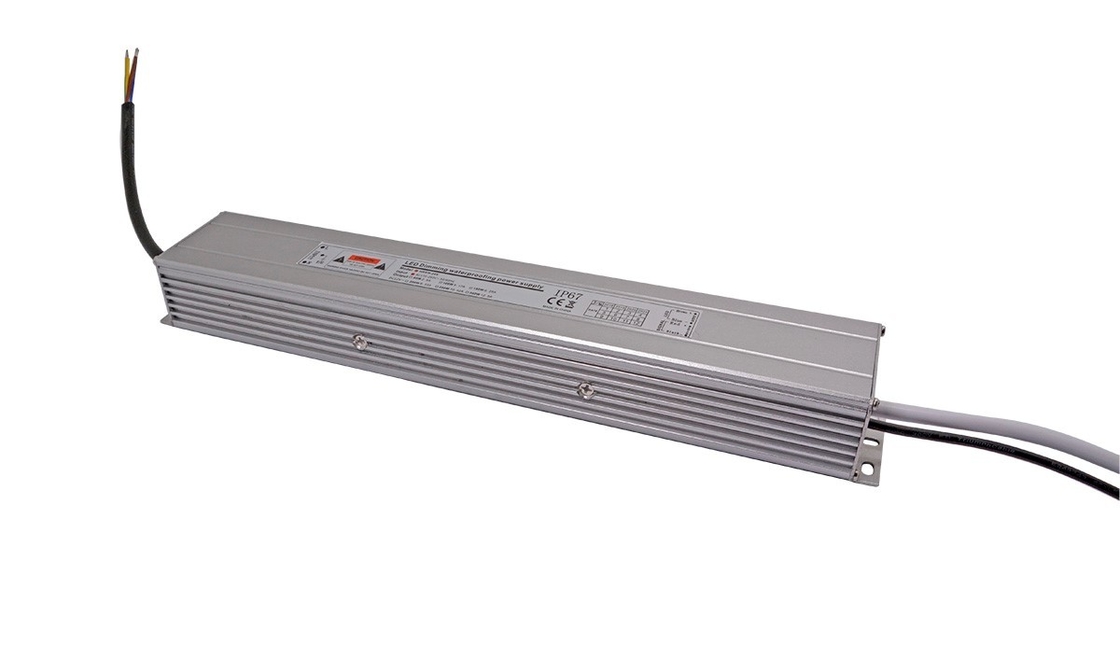

Led Driver 0-10 Dimmable 48v 2100ma 100w Ip67 0-10v Constant Current Led Driver
Product Advantages:
1. Constant Voltage
2. Double Insulated Class II Power Supply
3. High Temperature Resistant Flame Retardant Plastic Shell
4. Captured Terminal Screws
5. Ultra-thin & Compact Design
6. Over-Voltage, Over-Current, Short-Circuit Protection
Product Description
| Model | VUF-100-048E1 | |
| Output | DC voltage | 30-48V |
| Rated current | 2100mA | |
| Current range | 100-265VAC | |
| rated power | 100W | |
| Ripple & Noise (peak to peak) | <1.5V | |
| No-load voltage | ±0.5V | |
| Input | voltage range | 100~265VAC |
| Current | 47~63Hz | |
| Power factor | 0.92 | |
| effectiveness(Typ.) | 0.83 | |
| Alternating current(Typ.) | 0.72A/170VAC 0.56A/220VAC 0.46A/265VAC | |
| Protection | Short circuit | Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal |
| overload | 100-120% | |
| environment | Operating temperature | -30~+50℃ (Please refer to the load reduction curve) |
| Protection class | IP67 Suitable for indoor and outdoor use | |
| Storage temperature | -40~+80℃ | |
| Safety&EMC | Safety standards | Suitable for EN61347-1;EN61347-2-13;SELV;IP67 |
| Pressure | Input - Output: 3.75KVAC Input - Enclosure, Ground: 2KVAC Output - Enclosure, Ground: 0.5KVAC | |
| Dimming method | Triple (0 / 1-10Vdc or 10V PWM or resistor) | |
| Tips | 1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C. 2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth. | |
Why choose us?
*All products complete CE,SAA,RoHS approval, some products have got ETL ,TUV, GS, CB certificates.
*Made by our own factory, for control the quality also for the LED Driver is stable and reliable.
* Focus on the LED Driver research and development, production more than 13years.
*All products are widely used in Domestic government projects not only, but also Office space, Shopping malls, Star hotel, home lights etc. In all over the world.
*OEM, ODM are all welcome, unchanged quality and competitive price.
