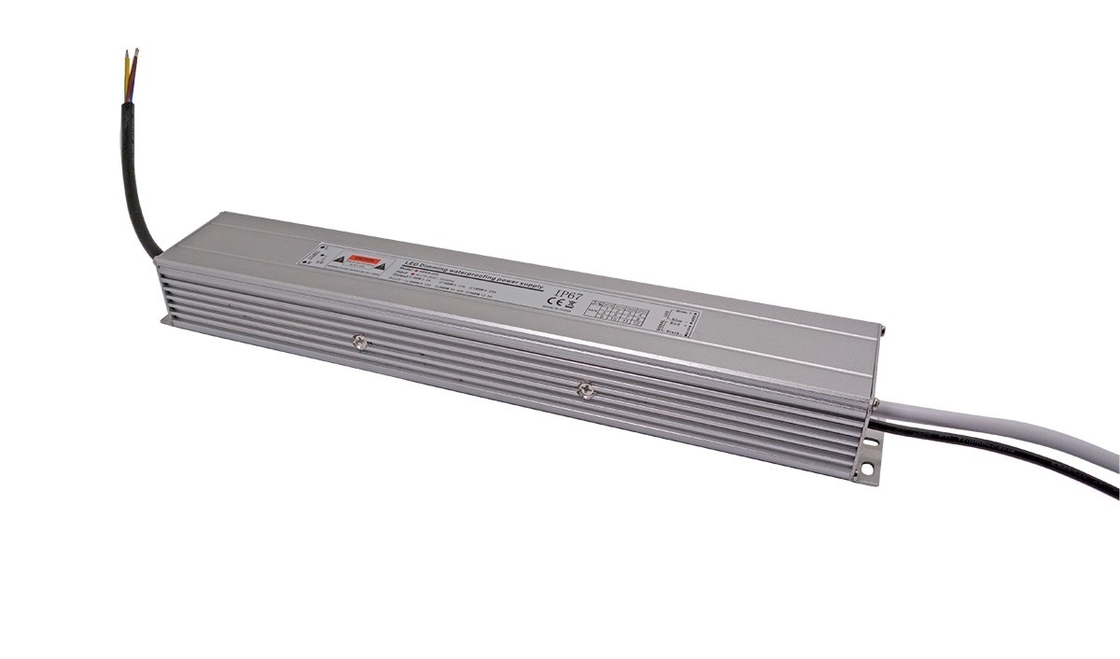

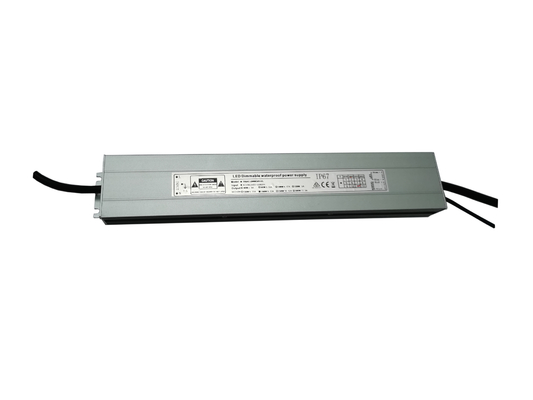

Product Details:
|
| Model Name: | TRIAC-200W24V-HL | Work Style: | 0~10V Triac Dimming |
|---|---|---|---|
| Output Power: | 200W | Output Current: | 8300mA |
| Output Voltage: | 24V | Application: | LED Strip Light, Signage |
| Warranty: | 3 Years | Weight: | 850g |
| Highlight: | Ultralight Triac Dimming LED Driver,Waterproof Triac Dimming LED Driver,Multipurpose LED Triac Dimmable Driver |
||
* Triac and 0~10V two-in-one dimmable driver
* Compatibility leading edge, trailing edge phase-cut and 0-10V dimmers.
* Dimming range: 0~100%, LED start at 0.1% possible
* Protections: Short circuit / Over current
* IP67 design for indoor or outdoor installations
* Suitable for LED lighting and moving sign applications
* 3 years warranty
| Item No. | TRIAC-200W24V-HL |
| Output Current | 8300mA |
| Output Voltage | 24V |
| Output Power | 200W |
| Input Voltage | 170-265V |
| Input Frequency | 50/60 Hz |
| Dimension(mm) | L303*W50*H30(mm) |
| Efficiency | 86% |
| Approval | CE RoHS SAA |
Why Choosing Us?
* Huawei New Energy sole focus on LED drivers and accessories since 2008, which owns an experience R&D team with dozens of patents
* The 20w ultra thin power supply is up to 12mm thickness. We are one of the manufacturers in the world that can produce such thin LED driver in the field of this industry.
* Huawei New Energy can provide customized service and give one stop solution according to different client/application. Such as parameter customization, products consulting/selection and OEM/ODM service.
* Our products are strictly compliant to all major international safety and performance standard. All of our units are 100% tested by a set of rigorous standard control procedures before shipment.
* The products are quite mature and highly recognized by the market. We have already built the sales network in the world thanks to the partners' trust, such as Europe, Australia, US and Southeast Asia etcs.
Dimmable LED Driver FAQ
Q1. Are you a manufacturer?
A: Yes, we are the manufacturer.We have one factory in Zhuhai, Guangdong, China.
You are warmly welcome to visit our factory.
Q2. Can I get sample?
A: Sure, If you need sample, pls tell me your spec need, or tell me the spec you need, then i will recommend you suitable led driver with good price, after confirm details, we will arrange the samples to you for testing. Welcome sample order to test and check quality.
Q3. Is it OK to print my logo on led driver & light product and use my own package and trade mark?
A: Yes. Normally we offer white inner box and carton box. Use your own design is ok. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: Does your company accept OEM&ODM?
A: Yes, welcome OEM&ODM.
Q5: What is your advantages?
1. OEM/ODM is welcome, over 12 years of experence.
2. High efficiency, low power consumption led light driver.
3. CE, RoHs, SAA, BIS, UKCA and ETL approved.
4. Stable quality, burn-in tests with 100% full load for more than 4 hours.
5. Over-heat, over-load, short-circuit & open-circuit protection.
6. Offer 3 or 5 years warranty and maintain our repair rate below 0.3%.
7. We will apply 0.3% spare parts on bulk orders.
8. Professional team will follow the whole after-sale.
