Product Details:
|
| Model Number: | VUO-012-024A7 | Output Power:: | 1 - 50W |
|---|---|---|---|
| Input Voltage:: | 100-265V | Product Name:: | 1a 12v POWER SUPPLY |
| Output Current:: | 500 MA | IP Rate:: | IP67 |
| Application: | Led Strip/led Lamp/led Light/mirror Light | Dimenssion:: | 85*30*20(mm) |
| High Light: | CE UKCA Waterproof Electronic LED Driver,500 mA Waterproof Electronic LED Driver,0.5a 12w Waterproof Electronic LED Driver |
||

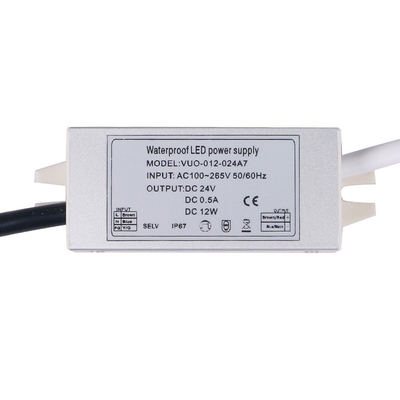

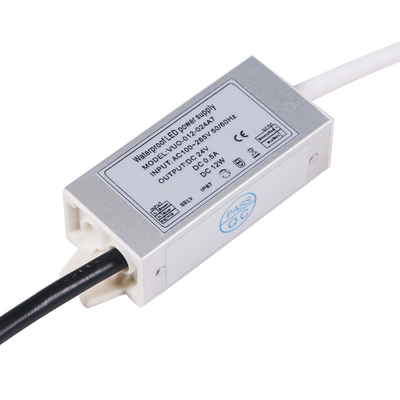

CE UKCA SAA 12w led driver ac to dc 12 volt mini small waterproof power supply 12v 1a 24v 0.5a for underground light
Product Advantages:
1. Constant Voltage
2. Waterproof IP67
3. Aviation Grade Metal Case
4. No Flicker, No Noise, Compatible With Various Controllers
5. High Reliability, Long Validity Period
6. Over-Voltage, Over-Current, Short-Circuit Protection
Products descriptions
| Model | VUO-012-024A7 | |
| Output | DC voltage | 24V |
| Rated current | 0.5A | |
| Current range | 0~0.5A | |
| rated power | 12W | |
| Ripple & Noise (peak to peak) | <400mV | |
| No-load voltage | ±0.5V | |
| Input | voltage range | 100~265VAC |
| Current | 47~63Hz | |
| Power factor | 0.5 | |
| effectiveness(Typ.) | 82% | |
| Alternating current(Typ.) | 0.09A/220VAC | |
| Protection | Short circuit | Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal |
| overload | 1.5A | |
| environment | Operating temperature | -30~+540℃ (Please refer to the load reduction curve) |
| Protection class | IP67 Suitable for outdoor and indoor use | |
| Storage temperature | -40~+80℃ | |
| Safety&EMC | Safety standards | Suitable for EN61347-1;EN61347-2-13;SELV;IP67 |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC,I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| Tips | 1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C . 2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth. | |
FAQ:
What are the different types of waterproof electronic LED drivers?
There are several types of waterproof electronic LED drivers, including constant currentdrivers, constant voltage drivers, dimmable drivers, and programmable drivers.
Constant current drivers deliver a constant current to the LED lighting fixtures, ensuring that the LED chips receive a consistent amount of electricity.
Constant voltage drivers deliver a constant voltage to the LED lighting fixtures, ensuring that the LED chips receive a consistent voltage.
Dimmable drivers allow LED lighting fixtures to be dimmed, providing greater control over lighting levels and energy consumption.
Programmable drivers allow for customizable programming of the driver's output voltage and current, making them ideal for more complex lighting projects.
Packaging:
Packaging Details
CARTONS,PALLETS
High quality good selling ip67 12V waterproof constant current led driver switch mode power supply unit
