Product Details:
|
| Product Name: | Waterproof Electronic LED Driver | Work Style: | Constant Voltage |
|---|---|---|---|
| Output Power: | 20W | Output Current: | 1.67A |
| Output Voltage: | 12V | Application: | Indoor Lightings; Outdoor Lightings |
| Warranty: | 3 Years | Weight: | 150g |
| Highlight: | Ultralight Waterproof Electronic LED Driver,1.67A Waterproof Electronic LED Driver,Heatproof 12V DC LED Driver |
||

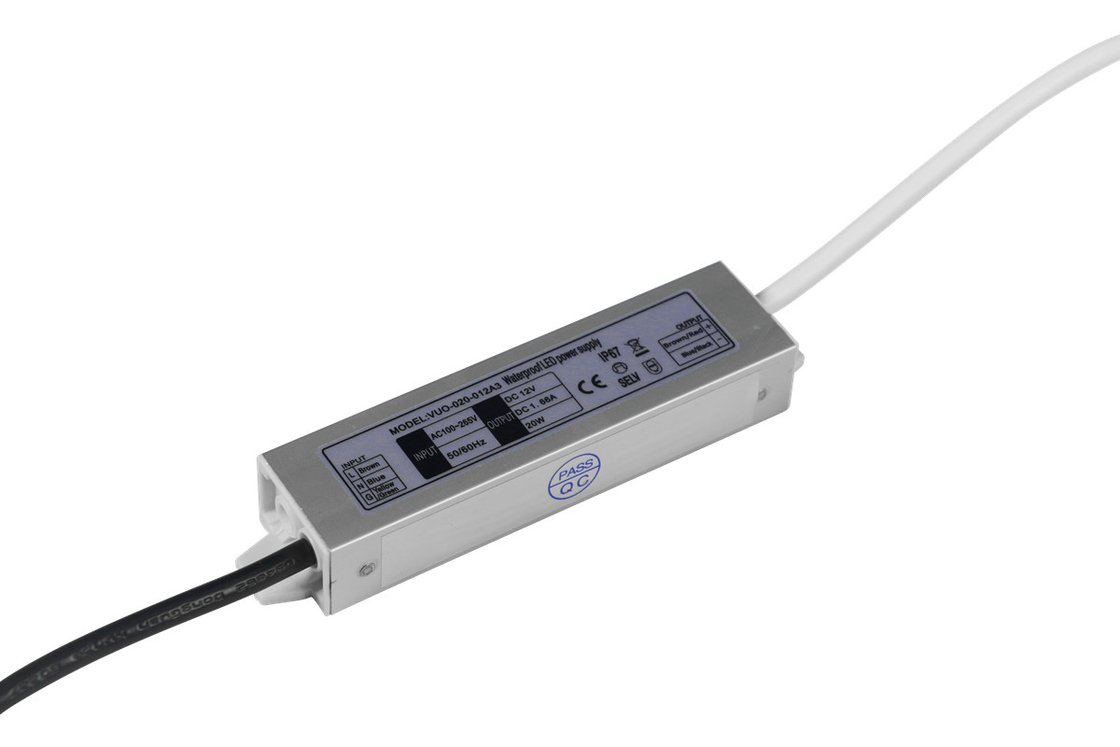

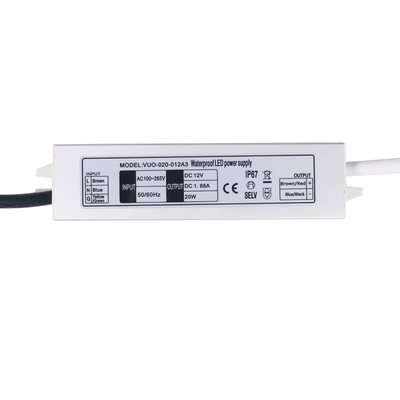

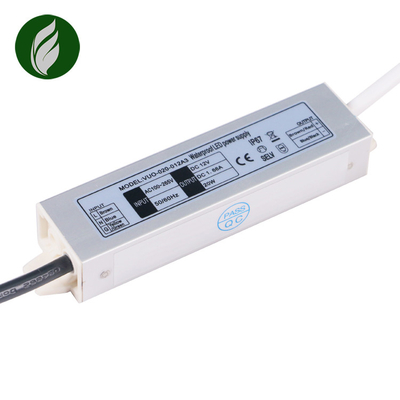

12VDC Waterproof Electronic LED Driver 1.67A 20W Output Power Supply
Waterproof Electronic Led Driver Features
* Constant voltage output
* 100% full load burn-in test
* Dry, damp and wet location
* Over voltage/over load/short circuit/over-temp protection
* IP67 waterproof design
Waterproof Electronic Led Driver Specification
|
Item No. |
VUO-020-012A3 |
|
Output Current |
1.67A |
|
Output Voltage |
12V |
|
Output Power |
20W |
|
Input Voltage |
100-265V |
|
Input Frequency |
50/60 Hz |
|
Dimension(mm) |
L132*W30*H20(mm) |
|
Efficiency |
82% |
|
Approval |
CE RoHS SAA ETL |
Waterproof Electronic Led Driver Data Sheet Download
VUO-020-012A3 specification.pdf
Installation Size
Waterproof Electronic Led Driver FAQ
1. What is your MOQ?
Our MOQ is 10pcs. For 20W drivers, product with client's logo and customized product, MOQ is 500pcs.
2. What can we buy from you?
Constant Voltage LED drivers, Slim LED driver, Dimmable LED driver
3. How to guarantee quality?
Always a pre-production sample before mass production, triple aging test before enter warehouse.
4. What payment terms do you support?
FOB/EXW, 30% deposit, 70% before shipment by T/T.
