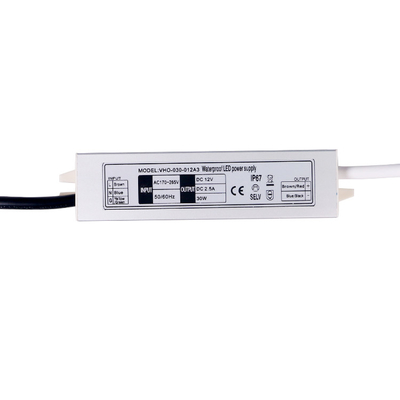

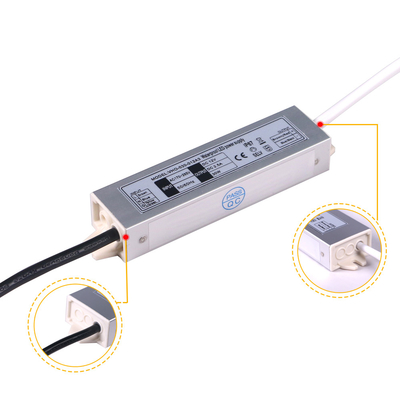

Product Details:
|
| Model Number: | VHO-030-012A3 | Output Power: | 30W |
|---|---|---|---|
| Input Voltage: | AC170-265V | Output Current: | 2500mA |
| PF: | 0.5-0.7 | IP Rate: | IP67 |
| Dimension: | 132*30*20mm | Protection: | OCP,OVP,SCP-Auto Recovery |
| Highlight: | Mirror Ultra Slim Waterproof LEDDriver,12v 30w Ultra Slim LED Driver,Ultra Slim LED Driver 2500mA |
||
12v 30w power supply ukca ce saa led mirror driver 12vdc ultra slim waterproof led driver dc 12v constant voltage
Parameters:
| Model | VHO-030-012A1 | |
| Output | DC voltage | 12V |
| Rated current | 2.5A | |
| Current range | 0-2.5A | |
| rated power | 30W | |
| Ripple & Noise (peak to peak) | <350mV | |
| No-load voltage | ±0.5V | |
| Input | voltage range | 170~265VAC |
| Current | 47~63Hz | |
| Power factor | 0.6 | |
| effectiveness(Typ.) | 0.82 | |
| Alternating current(Typ.) | 0.22A/220VAC | |
| Protection | Short circuit | Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal |
| overload | 3.9A | |
| environment | Operating temperature | -30~+50℃ (Please refer to the load reduction curve) |
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | |
| Storage temperature | -40~+80℃ | |
| Safety&EMC | Safety standards | Suitable for EN61347-1;EN61347-2-13;SELV;IP67 |
| WITHSTAND VOLTAGE | Input - Output: 3.75KVAC Input - Enclosure, Ground: 2KVAC Output - Enclosure, Ground: 0.5KVAC | |
| Tips | 1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C . 2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth. | |
FAQ:
What is an Outdoor LED Driver?
An outdoor LED driver is an electronic device that is used to power outdoor LED lighting systems. It is designed to withstand harsh weather conditions and provide reliable and efficient power to the LED lights.
What is the difference between an Indoor and Outdoor LED Driver?
Indoor LED drivers are not designed to withstand exposure to moisture, dust, and other outdoor elements. Outdoor LED drivers are specifically designed to operate in harsh outdoor environments and provide reliable performance in a range of weather conditions.
What is the IP Rating of an Outdoor LED Driver?
The IP rating of an outdoor LED driver refers to the level of protection it provides against the ingress of dust and water. A higher IP rating indicates a greater level of protection. For outdoor LED drivers, an IP rating of at least IP65 is recommended to ensure adequate protection against water and dust.
Applications:
1. Landscape Lighting: Outdoor LED drivers can be used in landscape lighting applications, powering LED lights that provide accent lighting for outdoor spaces, gardens, and other outdoor areas.
2. Parking Lot Lighting: Outdoor LED drivers are commonly used in parking lot lighting applications, providing energy-efficient lighting for parking lots and other outdoor parking areas.
3. Industrial Lighting: Outdoor LED drivers can also be used in industrial lighting applications, powering LED lights that provide bright and efficient lighting for warehouses, factories, and other industrial facilities.
