Product Details:
|
| Warranty(Year): | 5 Year | Product Weight（kg）: | 0.29 |
|---|---|---|---|
| Model Number: | VUF-030-012A5 | Output Power: | 30W |
| Input Voltage: | AC100-265V | Output Frequency: | 47~63HZ |
| Output Current: | 2500 MA | Dimension: | 257*30*20mm |
| High Light: | IP67 Outdoor LED Driver 30w,SAA LED Driver 30w,AC265V LED Power Supply |
||

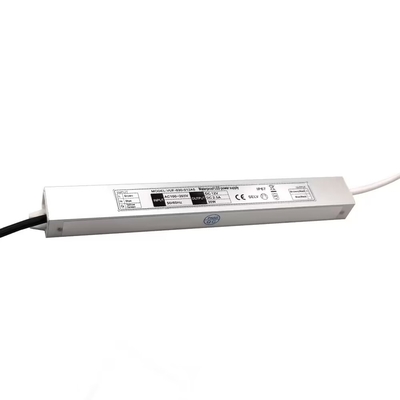

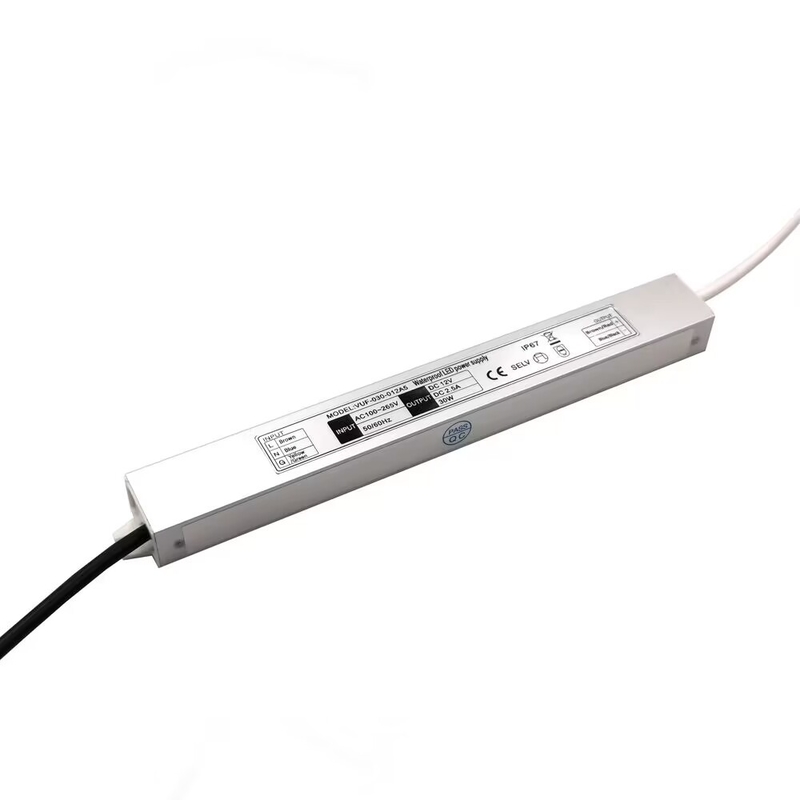

IP67 Outdoor LED Driver 30w Ultra Thin LED Power Supply AC100-265V
Customizable Packaging Power Supply 30w Dc 12v 24v Ultra Thin Led Power Supply AC100-265V
Application:
An outdoor LED driver is a device that regulates the power supply to outdoor LED lighting fixtures, ensuring that they operate at their optimal efficiency and lifespan.
Parameters:
|
Model |
VUF-030-012A5 |
|
|
Output |
DC voltage |
12V |
|
Rated current |
2.5A |
|
|
Current range |
0-2.5A |
|
|
rated power |
30W |
|
|
Ripple & Noise (peak to peak) |
<320mV |
|
|
No-load voltage |
±0.5V |
|
|
Input |
voltage range |
100~277VAC |
|
Current |
47~63Hz |
|
|
Power factor |
>0.9 |
|
|
effectiveness(Typ.) |
0.81 |
|
|
Alternating current(Typ.) |
0.17A/220VAC |
|
|
Protection |
Short circuit |
Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal |
|
overload |
3.5A |
|
|
environment |
Operating temperature |
-30~+50℃ (Please refer to the load reduction curve) |
|
INGRESS PROTECTION |
IP67 design for indoor or outdoor installations |
|
|
Storage temperature |
-40~+80℃ |
|
|
Safety&EMC |
Safety standards |
Suitable for EN61347-1;EN61347-2-13;SELV;IP67 |
|
WITHSTAND VOLTAGE |
Input - Output: 3.75KVAC Input - Enclosure, Ground: 2KVAC Output - Enclosure, Ground: 0.5KVAC |
|
|
EMC Test Standards |
EN55015,EN61000-3-2,EN61000-3-3 |
|
|
EN61547 |
||
|
Tips |
1. If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C . 2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth. |
|
Applications:
1. Street lighting: Outdoor LED drivers are commonly used to power streetlights, which require a high level of reliability and energy efficiency to operate effectively.
2. Parking lot lighting: LED drivers are used to power the LED fixtures used for parking lot lighting. These fixtures need to be bright and reliable to ensure optimal visibility and safety for drivers and pedestrians.
3. Landscape lighting: Outdoor LED drivers are used in landscape lighting applications to regulate the power supply to LED fixtures that are used to highlight trees, paths, and other outdoor features.
3. Sports lighting: LED drivers power the high-output LED fixtures that are used to light sports fields and stadiums. These fixtures must be able to withstand harsh outdoor conditions and operate at high levels of efficiency.
Packaging & delivery
1pc/inner box;
50pcs/carton
15.5kg/carton
Why choose us?
All products complete CE, RoHS,SAA approval, some products have got ETL,TUV, GS, CB,UKCA certificates.
Made by our own factory, for control the quality also for the power supply is stable and reliable.
Focus on the LED Power Supply research and development, production more than 10 years.
All products are widely used in Domestic government projects not only, but also Office space, Shopping malls, Star hotel, home lights etc. In all over the world.
OEM, ODM are all welcome, unchanged quality and competitive price.
