Product Details:
|
| Model Number: | VUO-020-024A3 | Output Power: | 20W |
|---|---|---|---|
| Output Type: | Single | Input Voltage: | 100-265VAC |
| Output Frequency: | 47-63Hz | Output Current: | 0.83A |
| Product Name: | 24 Volt Power Supply 20w | Dimension: | 127*30*20mm(L*W*H) |
| High Light: | Constant Voltage LED Driver Waterproof,Ip67 20Watt Constant Voltage LED Driver,830mA Constant Voltage LED Driver |
||

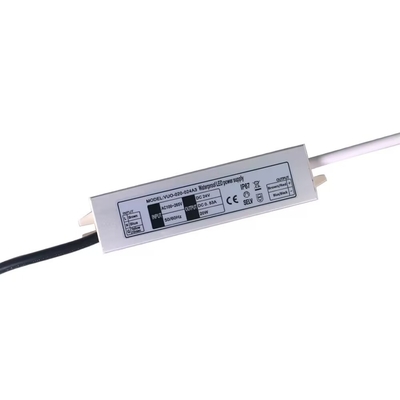

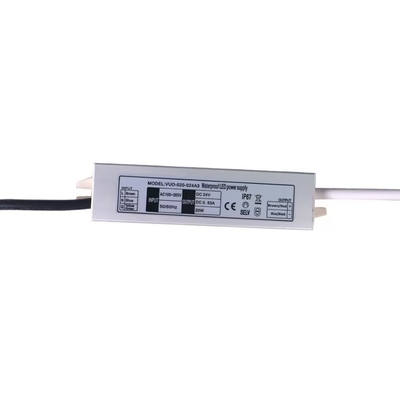

Ip67 20 Watt Led Driver Ac Dc 24 V Waterproof Power Supplies 240v To 24 Volt Dc 20w Power Supply 24 Volt 830mA
Product Description:
The constant voltage LED driver typically operates on an AC input voltage, such as 120V or 240V AC, and converts it to a DC output voltage suitable for driving LED lighting systems. The output voltage of the driver is typically 12V, 24V, or 36V, depending on the requirements of the specific LED lighting system.
Parameters:
| MODEL |
VUO-020-024A3
|
|
| OUTPUT | DC VOLTAGE | 24V |
| RATED CURRENT | 0.83A | |
| CURRENT RANGE | 0~0.83A | |
| RATED POWER | 20W | |
| RIPPLE&NOISE(max) | <700mV | |
| VOLTAGE TOLERANCE | ±0.5V | |
| INPUT | VOLTAGE RANGE | 90-265VAC |
| FREQUENCY RANGE | 47~63Hz | |
| POWER FACTOR(Typ.) | no PFC | |
| EFFICIENCY(Typ.) | 84% | |
| AC CURRENT(Typ.) | 0.18A/220VAC | |
| PROTECTION | Short circuit | Protection type:shut down o/p voltage with re-power on to recovery |
| Overload | 1.6A | |
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) |
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | |
| STORAGE TEMP | -40~+80℃ | |
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| EMC Test Standards | ||
| NOTE | 1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature. 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 3.Tolerance:includes set up tolerance,line regulation and load regulation. |
|
Lead time
| Quantity(pieces) | 1 - 100 | 101 - 500 | >500 |
| Lead time (days) | 7 | 14 | To be negotiated |
FAQ:
1. What is the difference between a constant voltage LED driver and a constant current LED driver?
A constant voltage LED driver supplies a constant voltage to the LED lighting system, while a constant current LED driver supplies a constant current to the LED lighting system. The choice between the two types of drivers depends on the specific requirements of the LED lighting system.
2. Can a constant voltage LED driver be used for any LED lighting system?
No, not all LED lighting systems are compatible with a constant voltage LED driver. Some LED lighting systems require a constant current LED driver to operate efficiently.
3. What is the maximum load that a constant voltage LED driver can handle?
The maximum load that a constant voltage LED driver can handle depends on the specific model and wattage rating of the driver. It is important to choose a driver with a wattage rating that is sufficient to handle the total wattage of the LED lighting system.
