Product Details:
|
| Model Number: | VUO-012-012A6 | Output Power:: | 12W |
|---|---|---|---|
| Output Type: | Single | Input Voltage: | AC100-265V |
| Output Frequency: | 47~63HZ | Dimension: | 65*30*20mm |
| PF: | 0.5-0.7 | Protection: | OCP/OVP/SCP/OVT |
| High Light: | Aluminum Waterproof Electronic LED Driver,AC 265V Waterproof Electronic LED Driver,12v 1a Waterproof Electronic LED Driver |
||

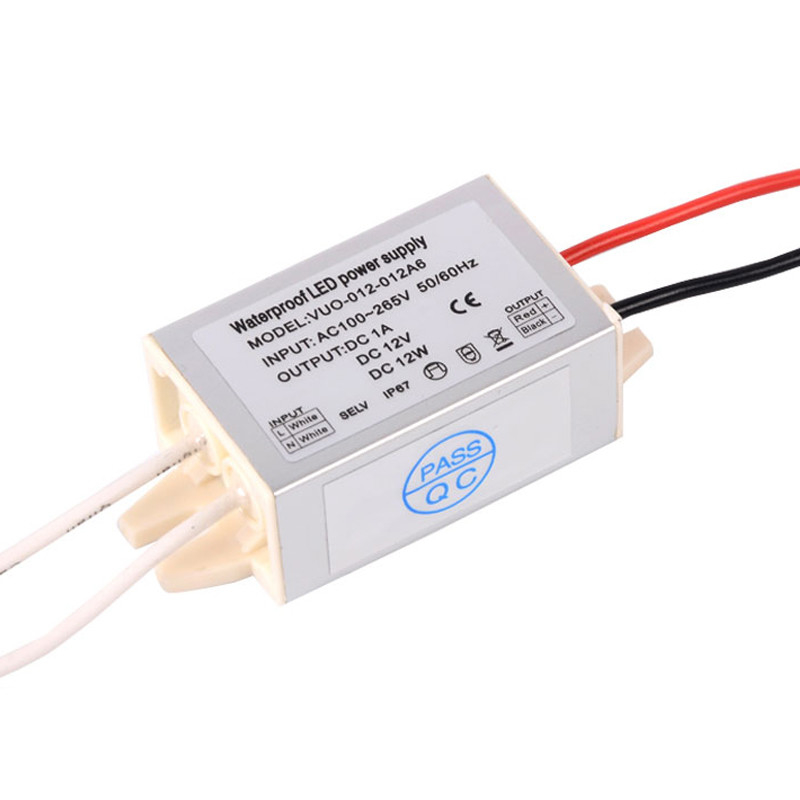

LED Driverfix Aluminum Power Supply 12v 1a 12W AC100-265V Waterproof IP67 Small Size Mini LED Driver
Product Advantages:
1. Constant Voltage
2. Waterproof IP67
3. Aviation Grade Metal Case
4. No Flicker, No Noise, Compatible With Various Controllers
5. High Reliability, Long Validity Period
6. Over-Voltage, Over-Current, Short-Circuit Protection
Products descriptions
| Model | VUO-012-012A6 | ||
| Output | DC voltage | 12V | |
| Rated current | 0-1A | ||
| rated power | 12W | ||
| Ripple & Noise (peak to peak) | <700mV | ||
| No-load voltage | ±0.5V | ||
| Input | voltage range | 100~265VAC | |
| Current | 47~63Hz | ||
| Power factor | 0.5-0.7 | ||
| effectiveness(Typ.) | 0.8 | ||
| Alternating current(Typ.) | 0.09A/220VAC | ||
| Protection | Short circuit | Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal | |
| overload | 0.83A-1.5A | ||
| environment | Operating temperature | -30~+50℃ (Please refer to the load reduction curve) | |
| Protection class | IP67 Suitable for indoor and outdoor use | ||
| Storage temperature | -40~+80℃ | ||
| Safety&EMC | Safety standards | Suitable for EN61347-1;EN61347-2-13;SELV;IP67 | |
| Pressure | Input - Output: 2KVAC Input - Enclosure, Ground: 2KVAC Output - Enclosure, Ground: 0.5KVAC | ||
| Tips | 1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C . 2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth. | ||
Packaging:
Lead time:
| Quantity(pieces) | 1 - 100 | 101 - 1000 | >1000 |
| Lead time (days) | 7 | 14 | To be negotiated |
