Product Details:
|

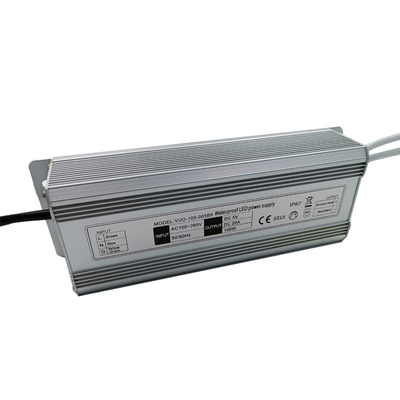

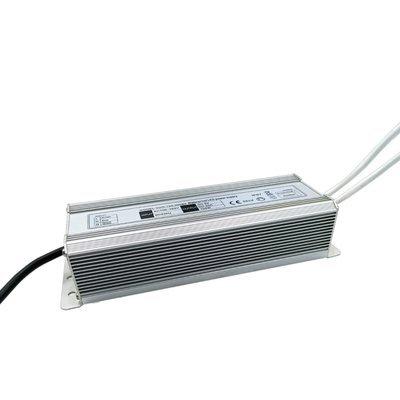

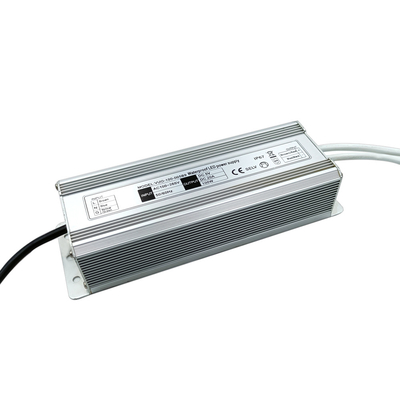

| Model Name: | VUO-100-005B9 | Feature: | Constant Voltage LED Transformer |
|---|---|---|---|
| Output Power: | 100W | Output Current: | 20A |
| Output Voltage: | 5V | Application: | LED Strip Light; Sign Light |
| Warranty: | 3 Years | Weight: | 1060g |
| High Light: | Lightweight Strip Constant Voltage LED Driver,heatproof Strip Light Transformer,Lightweight Strip Light Transformer |
||
* Application: LED Sign, LED Advertising, LED Illumination, etc.
* AC input 100-240V, 50/60Hz
| Item No. | VUO-100-005B9 |
| Output Current | 20A |
| Output Voltage | 5V |
| Output Power | 100W |
| Input Voltage | 100-265V |
| Input Frequency | 50/60 Hz |
| Dimension(mm) | L210*W71*H46(mm) |
| Efficiency | 83% |
| Approval | CE RoHS SAA |
Advantage:
1. Safety Standard: Safety: Design by IEC60950 standard.
2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.
4. Defective rate is less than 1% in 2 years.
5. 100% full load burn-in test before delivery;
Constant Voltage LED Driver FAQ
Q: Are you manufacturer?
A: Yes, we're Zhuhai factory focus on 12V& 24V LED power supplies(/LED drivers/LED transformers). We have our own import&export license. Welcome to visit us.
Q: What's your advantages of your LED power supplies?
A: Our products use true rating and reliable raw materails (full copper transformers, thermal conductive silicone...) but we quote our customers very competitive prices
Q: What's your payment terms?
A : T/T, L/C, Paypal, Western Union and Trade Assurance on Alibaba.com
30% deposit and balance before shipment or against the copy of B/L (long-term cooperative customers)
Negotiable for our VIP customers.
Q: Do you offer samples for testing?
A: Yes,we can provide free samples for testing and closer inspection,but freight cost should be paid by customers.
Q: OEM/ODM service are available?
A: Yes, we highly welcome OEM&ODM orders.
> Customers' brand logo and model NO. can be print on power label;Laser logo on products' Aluminum/metal casing is available
> User manuals
> Customized color box
> Customized printing carton
> Other stickers stick to LED power supplies or boxes
Q: Do you have burn-in test?
A: All of our LED transformers will have 100% burn-in test for 3~4 hours before packing
Q: Do you provide any certificates for your products?
A: CE,RoHS,SAA basic certifications are always available, some of our products even ETL&CB&UKCA listed. Other certificates, if needed just let us know
Q: What about the warranty for your LED driver?
A: Normally we provide 3 years warranty for our standard products
We can supply 5 years warranty for our high-ending series
