Product Details:
|
| Model Name: | VHO-100-024A01 | Feature: | Constant Voltage |
|---|---|---|---|
| Output Power: | 100W | Output Current: | 4.17A |
| Output Voltage: | 24V | Application: | Indoor And Outdoor Lighting |
| Warranty: | 3 Years | Weight: | 500g |
| High Light: | 50Hz Waterproof Electronic LED Driver,60Hz Waterproof Electronic LED Driver,Outdoor 24V 100W LED Driver |
||
* Small size, High efficiency, High reliability, Long lifetime;
* IP67 rating;
* Working temperature -25~+80°C;
* Protection: Overload,Short-circuit pratection,Over-temperature;
* Typical efficiency: 90%;
* Start delay design, which can reduce the starting current when multiple simulatance start;
* CE, IP67 certifide, ROHS compliant;
* Low output ripple moises.

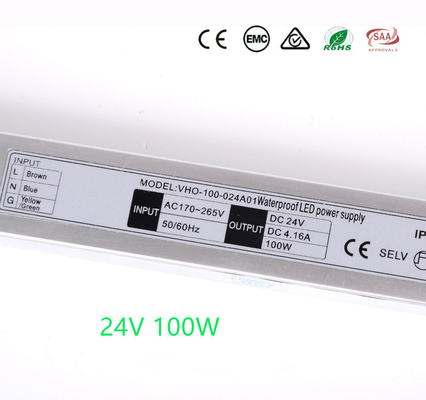

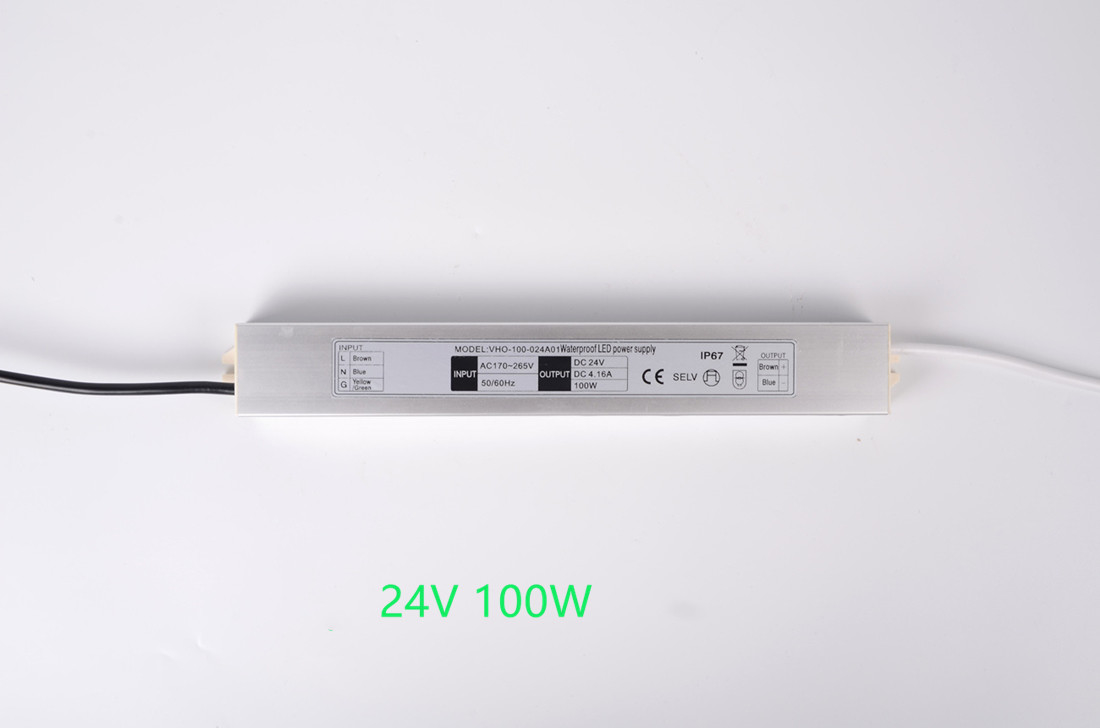

| Item No. | VHO-100-024A01 |
| Output Current | 4.17A |
| Output Voltage | 24V |
| Output Power | 100W |
| Input Voltage | 170-265V |
| Input Frequency | 50/60 Hz |
| Dimension(mm) | L303*W40*H22(mm) |
| Efficiency | 83% |
| Approval | CE RoHS SAA |
What Service we can supply?
1. All inquiries will be replied within 24 hours
2. Professional manufacturer,welcom to visit our website
3. OEM/ODM avaliable:
A. Print logo on our product;
B. Customized specification;
4. After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
5. High efficiency,long life span,reasonable&competetative price,fast lead time;
6. We have our engineer team, if you have any question about your LED applications, let us know freely.
Why Choosing Us?
* Huawei New Energy sole focus on LED drivers and accessories since 2008, which owns an experience R&D team with dozens of patents
* The 20w ultra thin power supply is up to 12mm thickness. We are one of the manufacturers in the world that can produce such thin LED driver in the field of this industry.
* Huawei New Energy can provide customized service and give one stop solution according to different client/application. Such as parameter customization, products consulting/selection and OEM/ODM service.
* Our products are strictly compliant to all major international safety and performance standard. All of our units are 100% tested by a set of rigorous standard control procedures before shipment.
* The products are quite mature and highly recognized by the market. We have already built the sales network in the world thanks to the partners' trust, such as Europe, Australia, US and Southeast Asia etcs.
Waterproof Electronic LED Driver FAQ
Q: Are you manufacturer?
A: Yes, we're Zhuhai factory focus on 12V& 24V LED power supplies(/LED drivers/LED transformers). We have our own import&export license. Welcome to visit us.
Q: What's your advantages of your LED power supplies?
A: Our products use true rating and reliable raw materails (full copper transformers, thermal conductive silicone...) but we quote our customers very competitive prices
Q: What's your payment terms?
A : T/T, L/C, Paypal, Western Union and Trade Assurance on Alibaba.com
30% deposit and balance before shipment or against the copy of B/L (long-term cooperative customers)
Negotiable for our VIP customers.
Q: Do you offer samples for testing?
A: Yes,we can provide free samples for testing and closer inspection,but freight cost should be paid by customers.
Q: OEM/ODM service are available?
A: Yes, we highly welcome OEM&ODM orders.
> Customers' brand logo and model NO. can be print on power label;Laser logo on products' Aluminum/metal casing is available
> User manuals
> Customized color box
> Customized printing carton
> Other stickers stick to LED power supplies or boxes
Q: Do you have burn-in test?
A: All of our LED transformers will have 100% burn-in test for 3~4 hours before packing
Q: Do you provide any certificates for your products?
A: CE,RoHS,SAA basic certifications are always available, some of our products even ETL&CB&UKCA listed. Other certificates, if needed just let us know
Q: What about the warranty for your LED driver?
A: Normally we provide 3 years warranty for our standard products
We can supply 5 years warranty for our high-ending series
