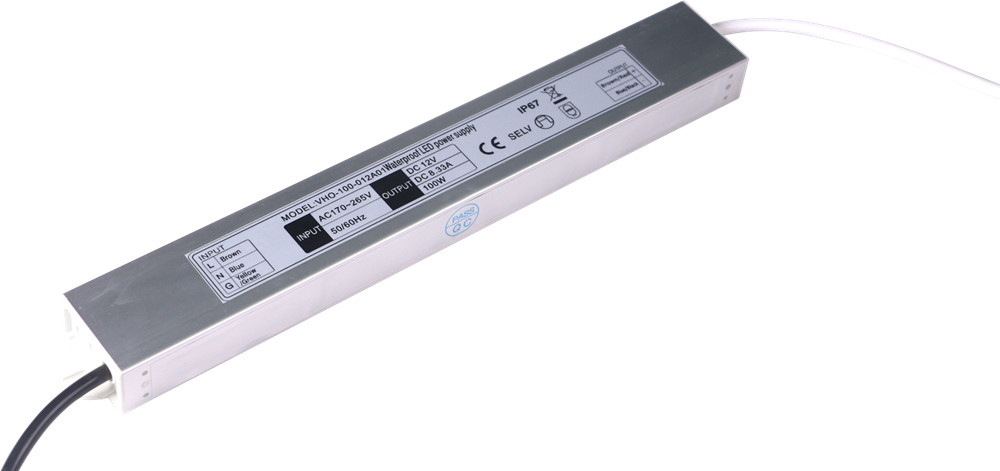

Product Details:
|
| Model Name: | VHO-100-012A01 | Feature: | Constant Voltage LED Switching Power Supply |
|---|---|---|---|
| Output Power: | 100W | Output Current: | 8.33A |
| Output Voltage: | 12V | Application: | LED Advertising Lighting Box; Architecture Lighting |
| Warranty: | 3 Years | Weight: | 500g |
| High Light: | CE Waterproof Electronic LED Driver,IP67 Waterproof Electronic LED Driver,Multipurpose LED Driver 12V 100W |
||
* Wide input Voltage 100~265Vac
* Super thin slim design, with a height of 20mm
* Protections: short circuit, over load, over voltage
* IP rating: IP67
* Ultra-low start up temp; Working temperature up to 60°C
* Fan-less design, cooling by free air convection, low noise
* High efficiency, long life, high reliability
* 100% full load burn-in test
* CE & RoHS certificated, meet to safety standard and EMC(EN#55032A)
| Item No. | VHO-100-012A01 |
| Output Current | 8.33A |
| Output Voltage | 12V |
| Output Power | 100W |
| Input Voltage | 100-265V |
| Input Frequency | 50/60 Hz |
| Dimension(mm) | L303*W40*H22(mm) |
| Efficiency | 83% |
| Approval | CE RoHS SAA |
VHO-100-012A01 specification.pdf
Advantage of our Waterproof LED Driver
A. Miniature size with complete protections and light weight
B. Most economical models with complete safety certificates, CE,RoHS.
C. With new CMOS technology, lower products heat , more environmentally friendly and energy saving.
D. Higher efficiency and lower hear dissipations for switched mode power supply.
E. For the Led Lights Strip Power Supply,Widely used in Industrial automation, LED display, communications, etc.
Waterproof Electronic LED Driver FAQ
Q1: What's Your Main Products?
A: Power Supply,LED Driver,
Q2: Can You Accept OEM Or ODM Orders?
A:Yes, We Can.Customized Orders Are Also Welcomed.
Q3: Where Export Your Products?
A: Our Major Market Is Europe, Australia, North America and Middle East.
Q4: What is Your Delivery Time?
A: Within 15-20 Days After Receiving The Advance (It is According To The Quantity)
Q5: How Do You Control The Items Quality?
A: We Have In Each Production Line, 3 QC Engineers Test Products During Produce
