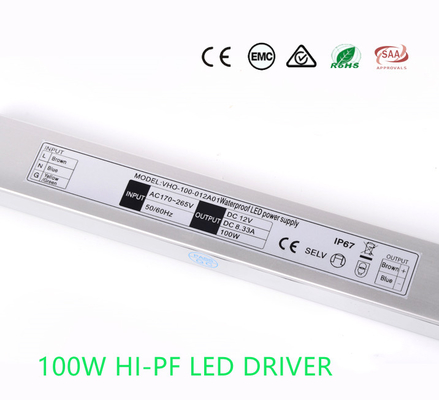

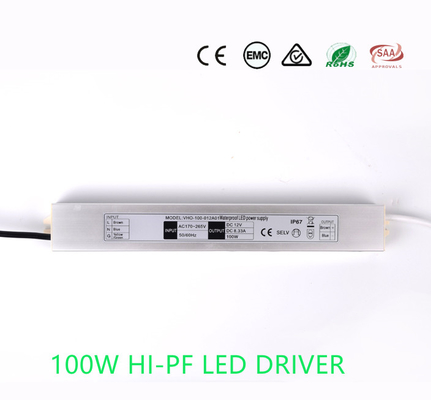

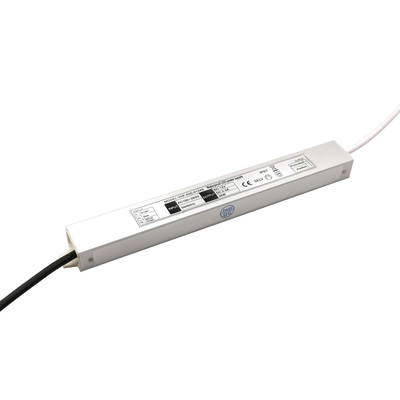

Product Details:
|
| Model Name: | VUF-100-012A01 | Feature: | Constant Voltage LED Driver Ac-dc Transformer |
|---|---|---|---|
| Output Power: | 100W | Output Current: | 8.33A |
| Output Voltage: | 12V | Application: | LED Strip Light; Neon Flex; LED Signage |
| Warranty: | 5 Years | Weight: | 500g |
| High Light: | 8.33A LED Strip Light Driver,100W LED Strip Light Driver,Moistureproof 12V 100W LED Driver |
||
· High efficiency, High reliability, Long lifetime;
· IP67 rating;
· Working temperature -25~+80°C;
· Protection: Overload, Short-circuit pratection, Over-temperature;
· Typical efficiency: 90%;
· Start delay design, which can reduce the starting current when multiple simulatance start;
· CE, IP67 certifide, ROHS compliant;
· Low output ripple moises.
| Item No. | VUF-100-012A01 |
| Output Current | 8.33A |
| Output Voltage | 12V |
| Output Power | 100W |
| Input Voltage | 100-265V |
| Input Frequency | 50/60 Hz |
| Dimension(mm) | L303*W40*H22(mm) |
| Efficiency | 86% |
| Approval | CE RoHS SAA ETL |
Waterproof Electronic LED Driver FAQ
Q1: What's Your Main Products?
A: Power Supply,LED Driver,
Q2: Can You Accept OEM Or ODM Orders?
A:Yes, We Can.Customized Orders Are Also Welcomed.
Q3: Where Export Your Products?
A: Our Major Market Is Europe, Australia, North America and Middle East.
Q4: What is Your Delivery Time?
A: Within 15-20 Days After Receiving The Advance (It is According To The Quantity)
Q5: How Do You Control The Items Quality?
A: We Have In Each Production Line, 3 QC Engineers Test Products During Produce
