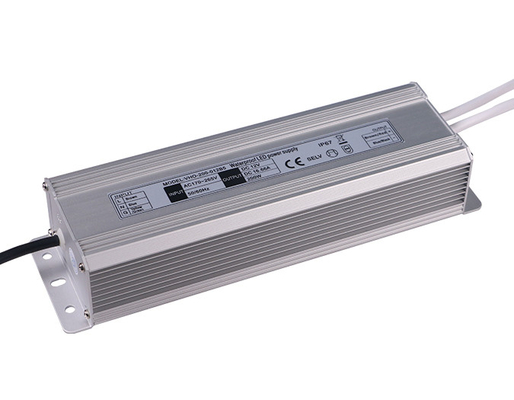

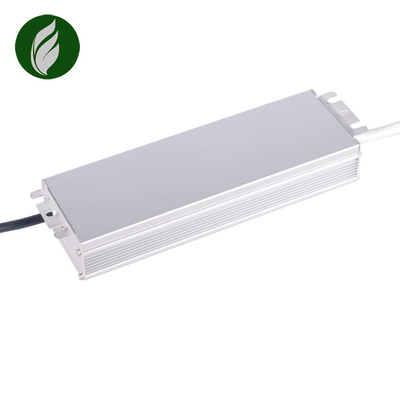

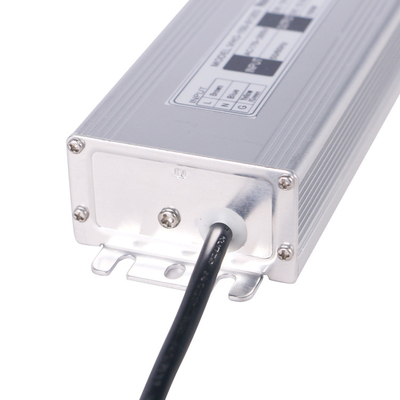

Product Details:
|
| Model Name: | VHO-200-012B5 | Feature: | Constant Voltage LED Transformer |
|---|---|---|---|
| Output Power: | 200W | Output Current: | 16.67A |
| Output Voltage: | 12V | Application: | LED Neon Flex; LED Advertising |
| Warranty: | 3 Years | Weight: | 1210g |
| Highlight: | 240mm High Voltage LED Driver,46mm High Voltage LED Driver,Moistureproof LED Power Driver |
||
* Application: LED Sign, LED Advertising, LED Illumination, etc.
* AC input 100-240V, 50/60Hz
| Item No. | VHO-200-012B5 |
| Output Current | 16.67A |
| Output Voltage | 12V |
| Output Power | 200W |
| Input Voltage | 170-265V |
| Input Frequency | 50/60 Hz |
| Dimension(mm) | L240*W71*H46(mm) |
| Efficiency | 86% |
| Approval | CE RoHS SAA |
Waterproof Electronic LED Driver Advantage
1. Safety Standard: Safety: Design by IEC60950 standard.
2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary: 1200Vac/10mA/60S for type test.
Primary to case: 1200Vac/10mA/60S for type test.
3. Insulation resistance: Primary to secondary:10MΩ min at 500V DC.
4. Defective rate is less than 1% in 2 years.
5. 100% full load burn-in test before delivery;
Waterproof Electronic LED Driver FAQ
Q1: What's Your Main Products?
A: Power Supply,LED Driver,
Q2: Can You Accept OEM Or ODM Orders?
A:Yes, We Can.Customized Orders Are Also Welcomed.
Q3: Where Export Your Products?
A: Our Major Market Is Europe, Australia, North America and Middle East.
Q4: What is Your Delivery Time?
A: Within 15-20 Days After Receiving The Advance (It is According To The Quantity)
Q5: How Do You Control The Items Quality?
A: We Have In Each Production Line, 3 QC Engineers Test Products During Produce
