Product Details:
|
| Warranty(Year): | 3-Year | Output Power: | 18w |
|---|---|---|---|
| Input Voltage: | 24v | Output Frequency: | 50~60Hz |
| Output Current: | 1.25A | Dimension: | L118*W52*H18 (mm) |
| Working Temperature: | -40 ~ +80°C | Protection: | Short Circuit / Overload / Over Voltage / Over Temperature |
| High Light: | Constant Voltage Under Cabinet LED Driver,24v Under Cabinet LED Driver,Under Cabinet LED Driver 18w |
||

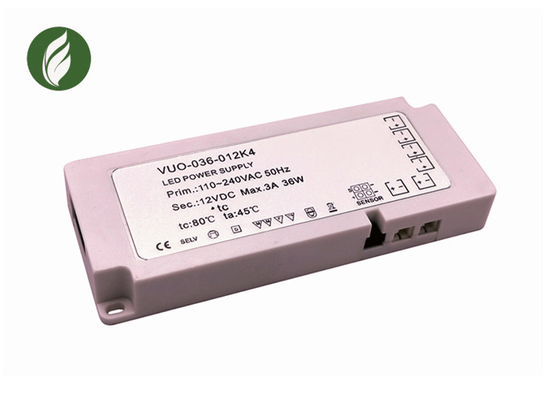

LED Power Supply for led home cabinet lighting system led driver transformer constant voltage
Product Description
* Slim size, multi-interface output
* Withstand voltage up to 3750V
* Isolation design
* Including EMI filtering
* Multi-capacitor design, longer service life
* No need for sensor interface or need to reduce the output port, can be customized
* Warranty for 3 years
Specification
| Product Name | Cabinet light LED driver |
| Case Material | Plastic Case |
| Model No | VUO-018-024K3 |
| Input Voltage Range | 100~265VAC |
| Rated power | 18W |
| Efficiency | 84% |
| Power Factor | ＞0.9 |
| Protection | Short circuit / Overload / Over voltage / Over temperature |
| Warranty | 3 Years |
| Certification | CE ROHS ETL SAA CB UKCA EMC ERP BIS |
| Dimension | 118*52*18mm(L*W*H) |
| Customization | Accept OEM/ODM service |
What Service we can supply?
1. All inquiries will be replied within 24 hours
2. Professional manufacturer,welcom to visit our website
3. OEM/ODM avaliable:
A. Print logo on our product
B. Customized specification
4. After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production
5. High efficiency,long life span,reasonable&competetative price,fast lead time;
6. We have our engineer team, if you have any question about your LED applications, let us know freely.
Why Choosing Us?
* Huawei New Energy sole focus on LED drivers and accessories since 2008, which owns an experience R&D team with dozens of patents
* The 20w ultra thin power supply is up to 12mm thickness. We are one of the manufacturers in the world that can produce such thin LED driver in the field of this industry.
* Huawei New Energy can provide customized service and give one stop solution according to different client/application. Such as parameter customization, products consulting/selection and OEM/ODM service.
* Our products are strictly compliant to all major international safety and performance standard. All of our units are 100% tested by a set of rigorous standard control procedures before shipment.
* The products are quite mature and highly recognized by the market. We have already built the sales network in the world thanks to the partners' trust, such as Europe, Australia, US and Southeast Asia etcs.
