Product Details:
|
| Model Number:: | VUO-006-024M1 | Output Power:: | 1 - 50W |
|---|---|---|---|
| Input Voltage:: | 100-265V | Output Frequency:: | 50Hz-60Hz |
| Output Current:: | 250 MA | Waterproof Class:: | IP20 |
| Protection:: | OCP, OVP, SCP-Auto Recovery | Dimenssion:: | L98.5*W46*H11(mm) |
| High Light: | 240v Ultra Thin LED Driver 60hz,SAA ETL Ultra Thin LED Driver,24vdc Ultra Thin LED Driver |
||
Ultra Slim Led Power Supply 100-240v 50-60hz 6W Mini Led Driver 24vdc 0.25a For Indoor Light
Product Description:
* Constant voltage output
* Ultra slim design
* Flicker free
* Terminal block deign, flexible wiring
* over voltage/over load/short circuit/over-temp protection
Product Advantages:
1. Constant Voltage
2. Double Insulated Class II Power Supply
3. High Temperature Resistant Flame Retardant Plastic Shell
4. Captured Terminal Screws
5. Ultra-thin & Compact Design
6. Over-Voltage, Over-Current, Short-Circuit Protection
Specifications:
| Model | VUO-006-024M1 | |
| Output | DC voltage | 24V |
| Rated current | 0.25A | |
| Current range | 0~0.25A | |
| rated power | 6W | |
| Ripple & Noise (peak to peak) | <100mV | |
| No-load voltage | ±0.5V | |
| Input | voltage range | 100~265VAC |
| Current | 47~63Hz | |
| Power factor | 0.5 | |
| effectiveness(Typ.) | 76% | |
| Alternating current(Typ.) | 0.06A/220VAC | |
| Protection | Short circuit | Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal |
| overload | 0.5A | |
| environment | Operating temperature | -10~+40℃ (Please refer to the load reduction curve) |
| Protection class | IP20 Suitable for indoor use | |
| Storage temperature | -40~+80℃ | |
| Safety&EMC | Safety standards | Suitable for EN61347-1;EN61347-2-13;SELV;IP20 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; EN61547 | |
| Tips | 1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C . 2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth. | |
Why choose us?
*All products complete CE,SAA,RoHS approval, some products have got ETL ,TUV, GS, CB certificates.

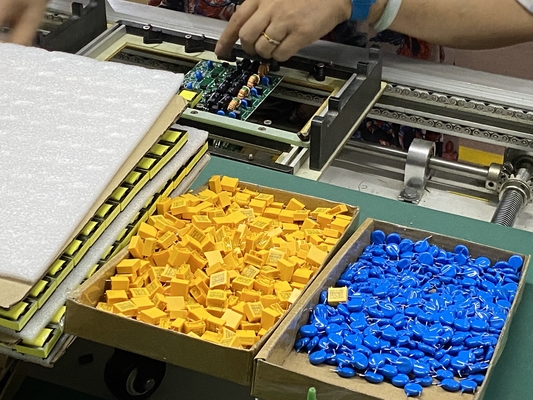

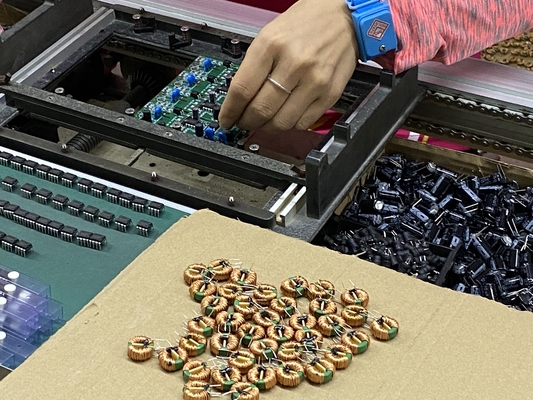

*Made by our own factory, for control the quality also for the LED Driver is stable and reliable.
* Focus on the LED Driver research and development, production more than 13years.
*All products are widely used in Domestic government projects not only, but also Office space, Shopping malls, Star hotel, home lights etc. In all over the world.
*OEM, ODM are all welcome, unchanged quality and competitive price.
