Product Details:
|
| Model Number: | VUO-006-012M1 | Output Power: | 6W |
|---|---|---|---|
| Input Voltage: | AC100-265V | Output Frequency: | 47~63HZ |
| Output Current: | 0.5A | IP Rate: | IP20 |
| Application: | LED Strip/Bulb/Downlight | Warranty(Year): | 3-Year |
| High Light: | ROHS Ultra Thin Downlight Driver,12mm Ultra Thin Downlight Driver,6watt 12V Ultra Thin Downlight Driver |
||

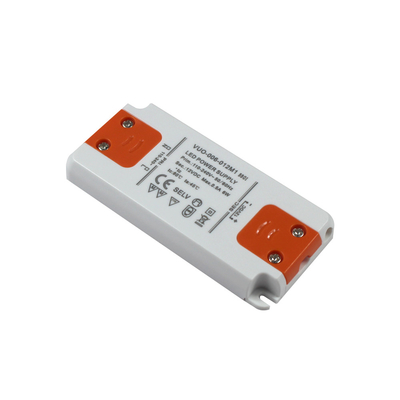

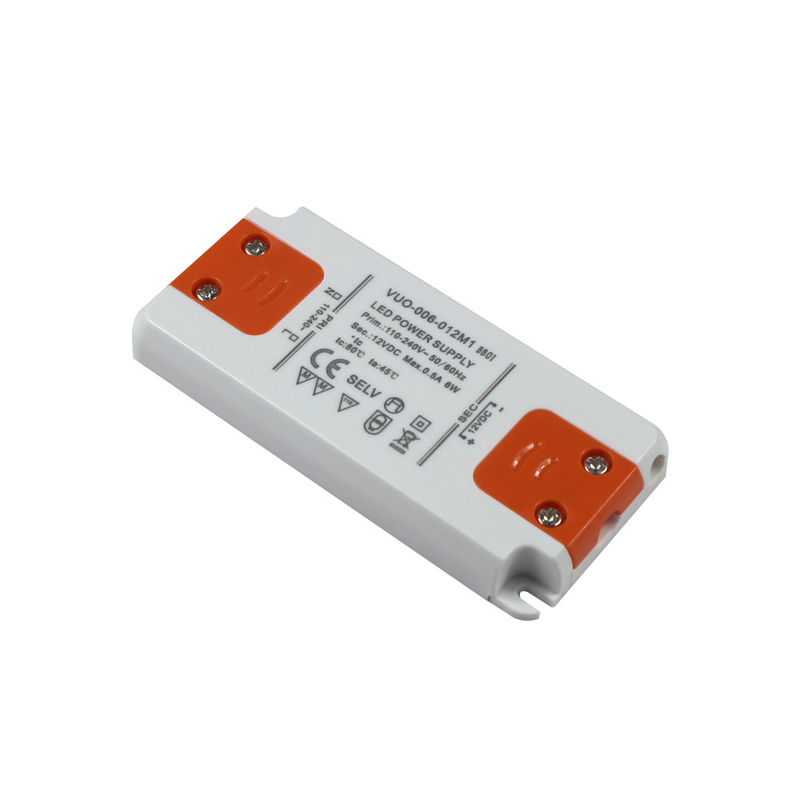

Ultra thin rubber shell 6watt 12V power supply thickness only 12mm with LED light and wall lamp
Product Description:
* Constant voltage output
* Ultra slim design
* Flicker free
* Terminal block deign, flexible wiring
* over voltage/over load/short circuit/over-temp protection
Product Advantages:
1. Constant Voltage
2. Double Insulated Class II Power Supply
3. High Temperature Resistant Flame Retardant Plastic Shell
4. Captured Terminal Screws
5. Ultra-thin & Compact Design
6. Over-Voltage, Over-Current, Short-Circuit Protection
Products descriptions:
| Model | VUO-006-012M1 | |
| Output | DC voltage | 12V |
| Rated current | 0-0.5A | |
| rated power | 6W | |
| Ripple & Noise (peak to peak) | <220mV | |
| No-load voltage | ±0.5V | |
| Input | voltage range | 110~240VAC |
| Current | 47~63Hz | |
| Power factor | ≥0.5 | |
| effectiveness(Typ.) | 0.75 | |
| Alternating current(Typ.) | 0.04A/220VAC | |
| Protection | Short circuit | Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal |
| overload | 100%-150% | |
| environment | Operating temperature | -10~+40℃ (Please refer to the load reduction curve) |
| Protection class | IP20 Suitable for indoor use | |
| Storage temperature | -40~+80℃ | |
| Safety&EMC | Safety standards | Suitable for EN61347-1;EN61347-2-13;SELV;IP20 |
| Pressure | Input - Output: 3.75KVAC Input - Enclosure, Ground: 2KVAC Output - Enclosure, Ground: 0.5KVAC | |
| Tips |
1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C . 2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwi. |
|
FAQ:
Q: What is an ultra-thin LED driver?
A: An ultra-thin LED driver is a type of power supply designed specifically for LED lighting applications. It is called "ultra-thin" because it has a low profile and can fit into tight spaces, making it ideal for use in slim LED panels and other compact lighting fixtures.
Q: What are the benefits of using an ultra-thin LED driver?
A: The benefits of using an ultra-thin LED driver include its compact size, efficiency, and reliability. Because it is designed specifically for LED lighting, it can provide the proper voltage and current needed to power the LEDs, while also minimizing power loss and heat generation. Additionally, its compact size makes it easy to install in tight spaces, and its reliability ensures that it will continue to operate properly over time.
Q: How do I choose the right ultra-thin LED driver for my application?
A: To choose the right ultra-thin LED driver for your application, you will need to consider several factors, including the voltage and current requirements of your LEDs, the size and shape of your lighting fixture, and any specific features or functions that you require. You should also look for a driver that is compatible with your specific type of LEDs, as different types of LEDs may have different voltage and current requirements.
