Product Details:
|
| Rated Power: | 2000 Watt | Battery Capacity: | 1920Wh |
|---|---|---|---|
| Battery Type: | LiFePO4 | Output Frequency: | 50~60Hz |
| Charging Time: | ＜1.5hous | Cycle Life: | 2000 Times |
| AC Output: | 110V/220V Pure Sine Wave | Controller Type: | MPPT |

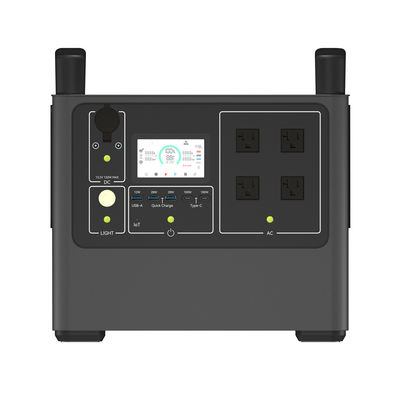

2000w 110V/220V Pure Sine Wave Solar Battery Portable Power Station With Solar Panel
Description:
Portable power stations are commonly used for outdoor activities such as camping, hiking, and fishing, as well as for emergency situations such as power outages. They can power a range of devices, including smartphones, laptops, refrigerators, lights, and even small appliances like electric kettles.
Technological Parameters:
|
Model |
S2000 | S2000Pro | ||
| 110Vac | 220Vac | 110Vac | 220Vac | |
| Battery Input | ||||
| Battery Input nominal voltage [V] | 48 | |||
| Battery Input voltage range[V] | 37~60 | |||
| Battery capacity [Wh] | 1440 | 1920 | ||
| Nominal charging current [A] | 25A | 25A | ||
| Nominal discharging current [A] | 45A | 45A | ||
| Max discharging current [A] | 30A | 45A | ||
| Life cycles(@25°C,1C discharge) | 2000 | |||
| AC Input | ||||
| AC charging power [W] | 1200 | 1500 | ||
| Nominal voltage[Vac] | 110 | 220 | 110 | 220 |
| Voltage range[V] | 90~140 | 180~260 | 90~140 | 180~260 |
| Nominal Frequency[Hz] | 60 | 50 | 60 | 50 |
| Frequency range[Hz] | 55~65 | 45~55 | 55~65 | 45~55 |
| Power Factor (@max. charging power) | >0.99 | |||
| DC Input | ||||
| Max car charging input power [W] | 120 | |||
| Max solar charging input power [W] | 400 | |||
| DC input voltage range [V] | 10~53 | |||
| Max DC/PV input current [A] | 10 | |||
| AC Output | ||||
| Nominal AC Power [W] | 2000 | 2000 | ||
| Surge power [W] | 5000 | 5000 | ||
| Nominal Grid Voltage [Vac] | 110 | 220 | 110 | 220 |
| Nominal Grid Frequency [Hz] | 60 | 50 | 60 | 50 |
| Max.AC Current [A] | 45 | 22.7 | 45 | 22.7 |
| Nominal AC Current [A] | 18 | 9 | 18 | 9 |
| THDv at Nominal Power | <1.5% | |||
| DC Output | ||||
| USB-A (x1) | 12.5w, 5V, 2.5A | |||
| QC3.0 (x2) | 28W each, (5V, 9V,12V), 2.4A | |||
| USB-TypeC (x2) | 100W each, (5V, 9V, 12V, 20V), 5A, | |||
| Car port and DC port totally max output power | 136W | |||
| Car port (x1) | 136w, 13.6V, 10A | |||
| DC port (x2) | 136w, 13.6V, 10A | |||
| Other Features | ||||
| LED light | 3W | |||
| LCD | 97mm*48mm | |||
| wireless charger | 10W | |||
| Parallel output | Optional | |||
| Efficiency | ||||
| Battery to AC Max[%] | 92.0 | 93.0 | 92.0 | 93.0 |
| AC to battery Max[%] | 93 | |||
| Protection | AC output over current; AC output short circuit; AC charging over current; | |||
| AC output over/under voltage; AC output over/under frequency; inverter over temperature; | ||||
| AC charging over/under voltage; Battery temperature high/low; Battery over/under voltage; | ||||
| General Data | ||||
| Dimensions(W*H*D)[mm] | 355*287*226 | 355*347*226 | ||
| Weight [Kg] | 17.65 | 22 | ||
| Cooling concept | Forced air cooling | |||
| Operation temperature range [°C] | 0~45°C(charging),-20~55°C(discharging) | |||
| Operation relative humidity [RH(%)] | 0-95, Non condensation | |||
| Ingress protection | IP20 | |||
| Noise[dB] | <65dB | |||
| Communication interface | WiFi | |||
Product Advantages:
When power rating of electrical appliances exceeds the rated output 1000w, the SmartDrive mode will be activated, our power station could still power the applications at 1000w.
Application:
1. Outdoor Activities: Portable energy storage power supply is suitable for outdoor activities, such as camping, hiking, picnic and so on. They can provide power for lighting, electric fans, portable refrigerators and other electronic equipment, making outdoor activities more comfortable and convenient.
2. Emergency Situations: In the event of a power outage, natural disaster, or other emergency, portable energy storage power supplies can provide backup power to keep essential equipment up and running.
3. Off-grid life: For people living in areas where power resources are scarce, portable energy storage power can be used as the main source of power, making off-grid life more convenient and comfortable.
