Product Details:
|
| Rated Power: | 2000 Watt | Battery Capacity: | 1440Wh |
|---|---|---|---|
| Battery Type: | LiFeP04 | Output Frequency: | 50~60Hz |
| Size: | 355*287*226 Mm | Gross Weight: | 20.5KG |
| AC Output: | 110V/220V Pure Sine Wave | Controller Type: | MPPT |

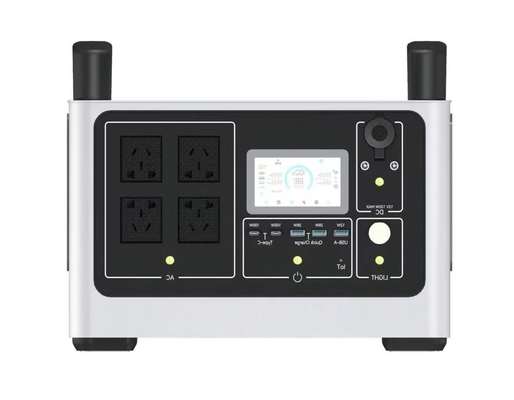

LiFePO4 Battery 2000w 220V Pure Sine Wave Portable Energy Solar Generator Power Station
Description
A portable power station is a device that can provide electrical power for various devices and appliances in situations where grid power is not available. It is essentially a rechargeable battery pack with multiple outlets for powering and charging devices.
Technological Parameters:
|
Model |
S2000 | S2000Pro | ||
| 110Vac | 220Vac | 110Vac | 220Vac | |
| Battery Input | ||||
| Battery Input nominal voltage [V] | 48 | |||
| Battery Input voltage range[V] | 37~60 | |||
| Battery capacity [Wh] | 1440 | 1920 | ||
| Nominal charging current [A] | 25A | 25A | ||
| Nominal discharging current [A] | 45A | 45A | ||
| Max discharging current [A] | 30A | 45A | ||
| Life cycles(@25°C,1C discharge) | 2000 | |||
| AC Input | ||||
| AC charging power [W] | 1200 | 1500 | ||
| Nominal voltage[Vac] | 110 | 220 | 110 | 220 |
| Voltage range[V] | 90~140 | 180~260 | 90~140 | 180~260 |
| Nominal Frequency[Hz] | 60 | 50 | 60 | 50 |
| Frequency range[Hz] | 55~65 | 45~55 | 55~65 | 45~55 |
| Power Factor (@max. charging power) | >0.99 | |||
| DC Input | ||||
| Max car charging input power [W] | 120 | |||
| Max solar charging input power [W] | 400 | |||
| DC input voltage range [V] | 10~53 | |||
| Max DC/PV input current [A] | 10 | |||
| AC Output | ||||
| Nominal AC Power [W] | 2000 | 2000 | ||
| Surge power [W] | 5000 | 5000 | ||
| Nominal Grid Voltage [Vac] | 110 | 220 | 110 | 220 |
| Nominal Grid Frequency [Hz] | 60 | 50 | 60 | 50 |
| Max.AC Current [A] | 45 | 22.7 | 45 | 22.7 |
| Nominal AC Current [A] | 18 | 9 | 18 | 9 |
| THDv at Nominal Power | <1.5% | |||
| DC Output | ||||
| USB-A (x1) | 12.5w, 5V, 2.5A | |||
| QC3.0 (x2) | 28W each, (5V, 9V,12V), 2.4A | |||
| USB-TypeC (x2) | 100W each, (5V, 9V, 12V, 20V), 5A, | |||
| Car port and DC port totally max output power | 136W | |||
| Car port (x1) | 136w, 13.6V, 10A | |||
| DC port (x2) | 136w, 13.6V, 10A | |||
| Other Features | ||||
| LED light | 3W | |||
| LCD | 97mm*48mm | |||
| wireless charger | 10W | |||
| Parallel output | Optional | |||
| Efficiency | ||||
| Battery to AC Max[%] | 92.0 | 93.0 | 92.0 | 93.0 |
| AC to battery Max[%] | 93 | |||
| Protection | AC output over current; AC output short circuit; AC charging over current; | |||
| AC output over/under voltage; AC output over/under frequency; inverter over temperature; | ||||
| AC charging over/under voltage; Battery temperature high/low; Battery over/under voltage; | ||||
| General Data | ||||
| Dimensions(W*H*D)[mm] | 355*287*226 | 355*347*226 | ||
| Weight [Kg] | 17.65 | 22 | ||
| Cooling concept | Forced air cooling | |||
| Operation temperature range [°C] | 0~45°C(charging),-20~55°C(discharging) | |||
| Operation relative humidity [RH(%)] | 0-95, Non condensation | |||
| Ingress protection | IP20 | |||
| Noise[dB] | <65dB | |||
| Communication interface | WiFi | |||
Company
Our energy storage products are developed and certified in accordance with the standards of the world's corresponding regions. Family energy storage is mainly facing Europe and North America, covering Africa and India from the net inverter. The portable power supply and grid -connected inverters focus on China, Japan, North America, Europe, Brazil and other regions. With high -quality products and services, the company is deeply recognized by global users and markets, and is committed to bringing new impetus to the world's energy economy.
FAQ
1. Q: How is the charging speed?
A: Our product has a built -in two -way inverter, which makes the communication power charging power up to 800W, from 0 to 80%. It only takes 1 hour
2. Q: How long is the product life?
A: Our product is ultra -low -power design. The air load time will enter the sleep mode for more than ten minutes. The power consumption is only 5 mAh, the placement time can reach one year, and the circulation life reaches 2,000 times.
3. Q: What is the safety factor?
A: We use the LiFePO4 battery chip with multiple BMS protection and high safety factor.
