Product Details:
|
| Battery Capacity: | 1440Wh | Rated Power: | 2000 Watt |
|---|---|---|---|
| Size: | 355*287*226 Mm | Gross Weight: | 20.5KG |
| Charging Time: | ＜1.5hous | Cycle Life: | 2000 Times |
| AC Output: | 110V/220V Pure Sine Wave | Controller Type: | MPPT |

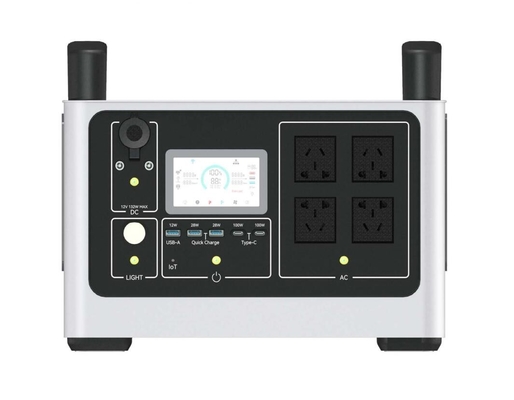

2000w 1440Wh MPPT Portable Power Energy Storage Emergency Mobile Outdoor Power Supply
Description
A portable power station is a device that can provide electrical power for various devices and appliances in situations where grid power is not available. It is essentially a rechargeable battery pack with multiple outlets for powering and charging devices.
Technological Parameters:
|
Model |
S2000 | S2000Pro | ||
| 110Vac | 220Vac | 110Vac | 220Vac | |
| Battery Input | ||||
| Battery Input nominal voltage [V] | 48 | |||
| Battery Input voltage range[V] | 37~60 | |||
| Battery capacity [Wh] | 1440 | 1920 | ||
| Nominal charging current [A] | 25A | 25A | ||
| Nominal discharging current [A] | 45A | 45A | ||
| Max discharging current [A] | 30A | 45A | ||
| Life cycles(@25°C,1C discharge) | 2000 | |||
| AC Input | ||||
| AC charging power [W] | 1200 | 1500 | ||
| Nominal voltage[Vac] | 110 | 220 | 110 | 220 |
| Voltage range[V] | 90~140 | 180~260 | 90~140 | 180~260 |
| Nominal Frequency[Hz] | 60 | 50 | 60 | 50 |
| Frequency range[Hz] | 55~65 | 45~55 | 55~65 | 45~55 |
| Power Factor (@max. charging power) | >0.99 | |||
| DC Input | ||||
| Max car charging input power [W] | 120 | |||
| Max solar charging input power [W] | 400 | |||
| DC input voltage range [V] | 10~53 | |||
| Max DC/PV input current [A] | 10 | |||
| AC Output | ||||
| Nominal AC Power [W] | 2000 | 2000 | ||
| Surge power [W] | 5000 | 5000 | ||
| Nominal Grid Voltage [Vac] | 110 | 220 | 110 | 220 |
| Nominal Grid Frequency [Hz] | 60 | 50 | 60 | 50 |
| Max.AC Current [A] | 45 | 22.7 | 45 | 22.7 |
| Nominal AC Current [A] | 18 | 9 | 18 | 9 |
| THDv at Nominal Power | <1.5% | |||
| DC Output | ||||
| USB-A (x1) | 12.5w, 5V, 2.5A | |||
| QC3.0 (x2) | 28W each, (5V, 9V,12V), 2.4A | |||
| USB-TypeC (x2) | 100W each, (5V, 9V, 12V, 20V), 5A, | |||
| Car port and DC port totally max output power | 136W | |||
| Car port (x1) | 136w, 13.6V, 10A | |||
| DC port (x2) | 136w, 13.6V, 10A | |||
| Other Features | ||||
| LED light | 3W | |||
| LCD | 97mm*48mm | |||
| wireless charger | 10W | |||
| Parallel output | Optional | |||
| Efficiency | ||||
| Battery to AC Max[%] | 92.0 | 93.0 | 92.0 | 93.0 |
| AC to battery Max[%] | 93 | |||
| Protection | AC output over current; AC output short circuit; AC charging over current; | |||
| AC output over/under voltage; AC output over/under frequency; inverter over temperature; | ||||
| AC charging over/under voltage; Battery temperature high/low; Battery over/under voltage; | ||||
| General Data | ||||
| Dimensions(W*H*D)[mm] | 355*287*226 | 355*347*226 | ||
| Weight [Kg] | 17.65 | 22 | ||
| Cooling concept | Forced air cooling | |||
| Operation temperature range [°C] | 0~45°C(charging),-20~55°C(discharging) | |||
| Operation relative humidity [RH(%)] | 0-95, Non condensation | |||
| Ingress protection | IP20 | |||
| Noise[dB] | <65dB | |||
| Communication interface | WiFi | |||
Application:
1. Telecommuting: Portable energy storage can provide people working from home with a reliable source of power to keep them working in the event of a power outage or other interruption.
2. Medical applications: Portable energy storage power supply can provide power for medical equipment and facilities, and provide support for emergency medical treatment in remote areas or in emergency situations.
