Product Details:
|
| AC Output: | 110V/220V Pure Sine Wave | Recharge Options: | AC + Car + Solar Charging |
|---|---|---|---|
| Cycle Life: | 2000 Times | Battery Capacity: | 1920Wh |
| Rated Power: | 2000 Watt | Controller Type: | MPPT |
| Battery Type: | LifePO4 | Output Frequency: | 50~60Hz |

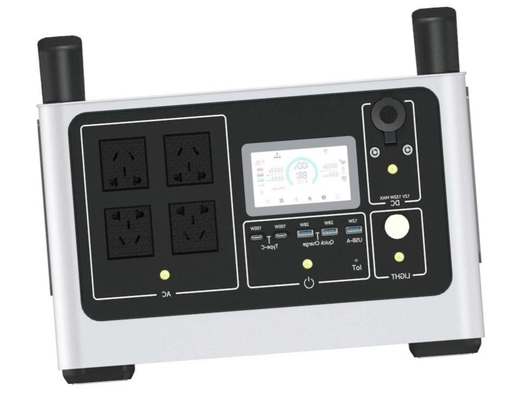

Portable Solar Power Station 2000w Charging Power Station for Energy Storage
Description
A portable power station is a device that can provide electrical power for various devices and appliances in situations where grid power is not available. It is essentially a rechargeable battery pack with multiple outlets for powering and charging devices.
Technological Parameters:
|
Model |
S2000 | S2000Pro | ||
| 110Vac | 220Vac | 110Vac | 220Vac | |
| Battery Input | ||||
| Battery Input nominal voltage [V] | 48 | |||
| Battery Input voltage range[V] | 37~60 | |||
| Battery capacity [Wh] | 1440 | 1920 | ||
| Nominal charging current [A] | 25A | 25A | ||
| Nominal discharging current [A] | 45A | 45A | ||
| Max discharging current [A] | 30A | 45A | ||
| Life cycles(@25°C,1C discharge) | 2000 | |||
| AC Input | ||||
| AC charging power [W] | 1200 | 1500 | ||
| Nominal voltage[Vac] | 110 | 220 | 110 | 220 |
| Voltage range[V] | 90~140 | 180~260 | 90~140 | 180~260 |
| Nominal Frequency[Hz] | 60 | 50 | 60 | 50 |
| Frequency range[Hz] | 55~65 | 45~55 | 55~65 | 45~55 |
| Power Factor (@max. charging power) | >0.99 | |||
| DC Input | ||||
| Max car charging input power [W] | 120 | |||
| Max solar charging input power [W] | 400 | |||
| DC input voltage range [V] | 10~53 | |||
| Max DC/PV input current [A] | 10 | |||
| AC Output | ||||
| Nominal AC Power [W] | 2000 | 2000 | ||
| Surge power [W] | 5000 | 5000 | ||
| Nominal Grid Voltage [Vac] | 110 | 220 | 110 | 220 |
| Nominal Grid Frequency [Hz] | 60 | 50 | 60 | 50 |
| Max.AC Current [A] | 45 | 22.7 | 45 | 22.7 |
| Nominal AC Current [A] | 18 | 9 | 18 | 9 |
| THDv at Nominal Power | <1.5% | |||
| DC Output | ||||
| USB-A (x1) | 12.5w, 5V, 2.5A | |||
| QC3.0 (x2) | 28W each, (5V, 9V,12V), 2.4A | |||
| USB-TypeC (x2) | 100W each, (5V, 9V, 12V, 20V), 5A, | |||
| Car port and DC port totally max output power | 136W | |||
| Car port (x1) | 136w, 13.6V, 10A | |||
| DC port (x2) | 136w, 13.6V, 10A | |||
| Other Features | ||||
| LED light | 3W | |||
| LCD | 97mm*48mm | |||

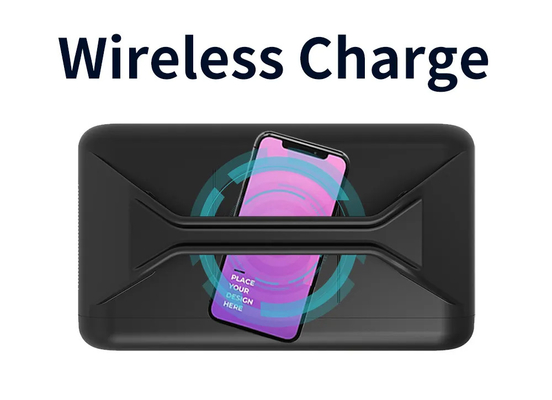

| wireless charger | 10W | |||
| Parallel output | Optional | |||
| Efficiency | ||||
| Battery to AC Max[%] | 92.0 | 93.0 | 92.0 | 93.0 |
| AC to battery Max[%] | 93 | |||
| Protection | AC output over current; AC output short circuit; AC charging over current; | |||
| AC output over/under voltage; AC output over/under frequency; inverter over temperature; | ||||
| AC charging over/under voltage; Battery temperature high/low; Battery over/under voltage; | ||||
| General Data | ||||
| Dimensions(W*H*D)[mm] | 355*287*226 | 355*347*226 | ||
| Weight [Kg] | 17.65 | 22 | ||
| Cooling concept | Forced air cooling | |||
| Operation temperature range [°C] | 0~45°C(charging),-20~55°C(discharging) | |||
| Operation relative humidity [RH(%)] | 0-95, Non condensation | |||
| Ingress protection | IP20 | |||
| Noise[dB] | <65dB | |||
| Communication interface | WiFi | |||
Product Advantages:
1. Portability: Portable Power Stations are designed to be lightweight and compact, making them easy to carry and transport. This makes them ideal for outdoor activities, emergency situations, and off-grid living.
2. Versatile output: 11 output ports in 6 types, including Wireless Charging Power 11 devices simultaneously
3. Safety: LiFePO4 Portable Power Stations are designed with safety features to prevent overcharging, overheating, and short-circuiting. They are also typically equipped with surge protectors to prevent damage to connected devices.
4. Quiet Operation: Portable Power Stations do not produce noise or emissions, making them ideal for use in quiet environments like campsites and RV parks.
Application:
1. Outdoor Activities: Portable energy storage power supply is suitable for outdoor activities, such as camping, hiking, picnic and so on. They can provide power for lighting, electric fans, portable refrigerators and other electronic equipment, making outdoor activities more comfortable and convenient.
2. Emergency Situations: In the event of a power outage, natural disaster, or other emergency, portable energy storage power supplies can provide backup power to keep essential equipment up and running.
3. Off-grid life: For people living in areas where power resources are scarce, portable energy storage power can be used as the main source of power, making off-grid life more convenient and comfortable.
