Plastic Triac Dimmable LED Driver

I'm Online Chat Now

Plastic Triac Dimmable LED Driver

Plastic Triac Dimmable LED Driver
Plastic Triac Dimmable LED Driver
Plastic Triac Dimmable LED Driver Plastic Triac Dimmable LED Driver Plastic Triac Dimmable LED Driver Plastic Triac Dimmable LED Driver

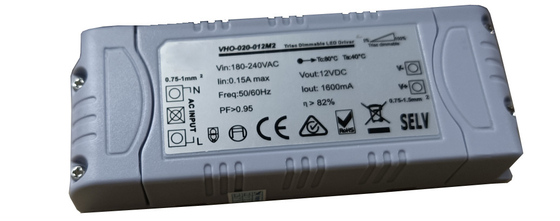

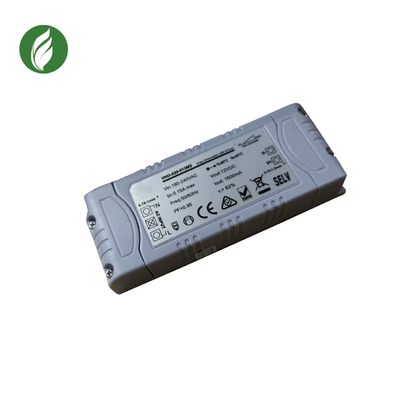

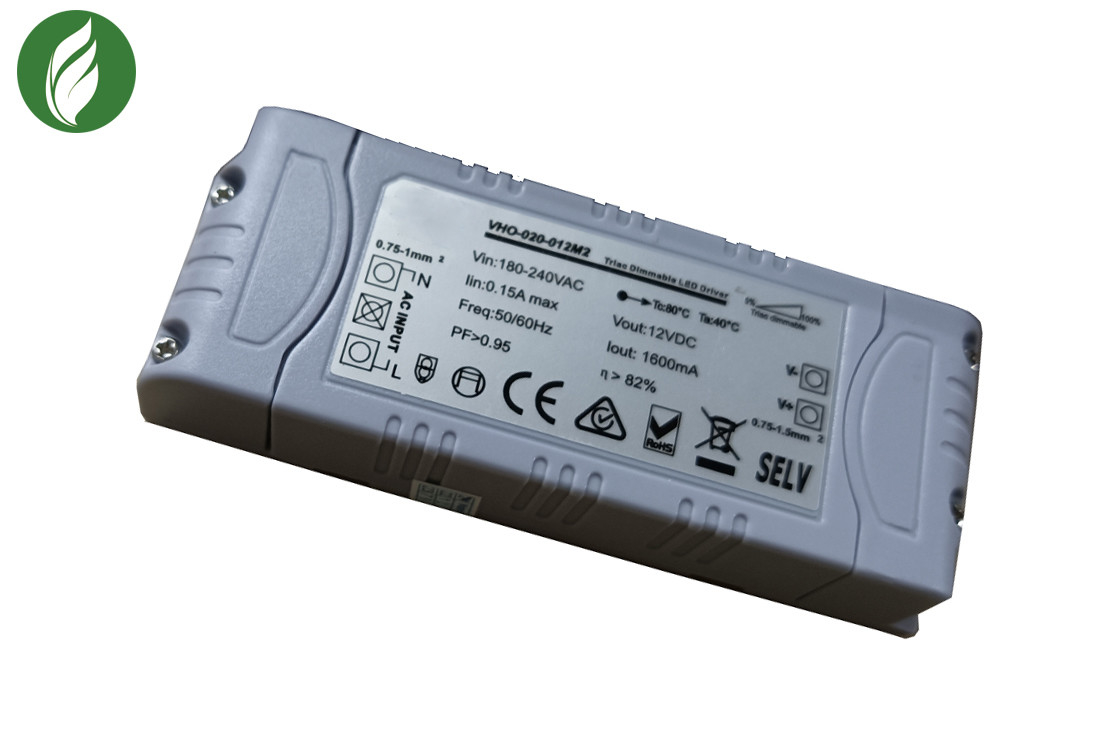

Large Image :  Plastic Triac Dimmable LED Driver

Product Details:
Place of Origin: China
Brand Name: H&W
Certification: CE RoHS SAA
Model Number: VHO-020-012M2
Payment & Shipping Terms:
Minimum Order Quantity: 5 Sets
Price: Negotiable
Packaging Details: Carton
Delivery Time: 20~30 days
Payment Terms: T/T, L/C, D/A, Western Union
Supply Ability: 10000 sets per month

Plastic Triac Dimmable LED Driver

Description
Model Name: VHO-020-012M2 Work Style: Triac
Output Power: 20W Output Current: 1670mA
Output Voltage: 12V Application: LED Strip Light, Signage
Warranty: 5 Years Weight: 62g
Highlight:

12V Dimmable LED Driver

,

20W Dimmable LED Driver

,

Plastic Triac Dimmable LED Driver

Dimming LED Driver Plastic 12V 20W Triac Power Supply



Dimmable LED Driver Product Features

* Triac dimmable driver
* Compatibility leading edge, trailing edge
* Dimming range: 0~100%, LED start at 0.1% possible
* Protections: Short circuit / Over current
* IP20 design for indoor installations
* Suitable for LED lighting and moving sign applications
* 5 years warranty


Dimmable LED Driver Product Specification

Item No. VHO-020-012M2
Output Current 1670mA
Output Voltage 12V
Output Power 20W
Input Voltage 180-240V
Input Frequency 50/60 Hz
Dimension(mm) L95*W36*H18(mm)
Efficiency 84%
Approval CE RoHS SAA


Installation Size

Plastic Triac Dimmable LED Driver 0



Why Choosing Us?

* Huawei New Energy sole focus on LED drivers and accessories since 2008, which owns an experience R&D team with dozens of patents

* The 20w ultra thin power supply is up to 12mm thickness. We are one of the manufacturers in the world that can produce such thin LED driver in the field of this industry.

* Huawei New Energy can provide customized service and give one stop solution according to different client/application. Such as parameter customization, products consulting/selection and OEM/ODM service.

* Our products are strictly compliant to all major international safety and performance standard. All of our units are 100% tested by a set of rigorous standard control procedures before shipment.

* The products are quite mature and highly recognized by the market. We have already built the sales network in the world thanks to the partners' trust, such as Europe, Australia, US and Southeast Asia etcs.





Dimmable LED Driver FAQ

Q1. How can I obtain a sample?

A: Contact us and we will handle it.



Q2. Can I add my own logo?

A: Sure, we offer flexible OEM & ODM solutions. You can have your logo on the product, packaging, user manual, you name it.



Q3. What is your MOQ?

A: None.



Q4. What is the production lead time?

A: We keep a ready to ship stock level on certain product lines, others usually take 2-4 weeks.



Q5. What is the delivery time?

A: We offer shipping via sea, road, rail and air. The shipment time depends on the choice of transportation.



Q6. What is the warranty?

A: We offer a minimum three years warranty along with a comprehensive after sale service.


Q7. Are the products certified?

A: Yes, we are fully certified for the EU and UK markets. If you require any other forms of certificates, do get in touch.



Plastic Triac Dimmable LED Driver 1
